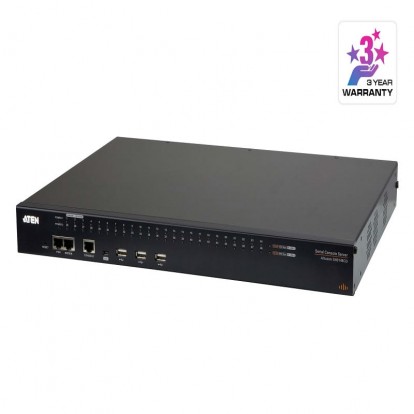

48-Port Serial Console Server with Dual Power/LAN

48-Port Serial Console Server with Dual Power/LAN

Product Code : SN0148CO

Brand Category : Serial Console Servers

Description



  • System Accessibility and Availability
    • Secure in-band, out-of-band remote serial console and USB console1 access
    • Browser access with an intuitive GUI
    • Terminal-based access with a menu-driven UI
    • Modem dial-in/dial-back/dial-out access
    • Front USB ports for storage, USB console1, and UC232B connection2
    • Laptop USB Console (LUC) port for local console access via laptop
    • Dual Ethernet ports allow fail control or dual IP address access
    • Dual power supply




  • Serial Console Management
    • Auto-sensing DTE/DCE feature supports a direct connection to Cisco network switches (and other compatible devices) without rollover cables for more convenient IT infrastructure deployment
    • Online/Offline detection of connected serial devices (including terminal blocks) – automatically send event notifications when the devices are offline (e.g. power failure) for device status monitoring
    • Response Check － checks the system status of the connected serial devices, and sends a notification if the check fails (e.g. system crash)
    • Convenient and simple serial device access via selectable Telnet/SSH and third-party clients such as PuTTY
    • Easy port access via selectable ActiveX or Java serial viewer
    • Comprehensive viewer functions – copy/paste, logging, data import, macros, broadcasting and message board
    • Sun Solaris ready – Sun “break-safe”
    • Alert Strings – whenever one of the pre-defined strings matches the message sent from the serial devices, you will be informed by serial console server via SNMP Trap alert and/or an email
    • Command filter – administrators can restrict users to execute only pre-defined commands
    • Multiple users can simultaneously access the same port – up to 16 connections per port
    • Modes for simultaneous access – Exclusive/Occupy/Share
    • Integrates with ATEN PDU products for power management of each port




  • Security
    • Supports secure login from browsers with TLS 1.2 data encryption and RSA 2048-bit certificates
    • Configurable user permissions for port access and control
    • Local and remote authentication and login
    • Third-party authentication via RADIUS, TACACS+, LDAP/AD and Kerberos
    • IP and MAC address filter for enhanced security protection
    • High security grade – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
    • Supports security level configuration – High, Medium-high, Medium or Custom, to ensure a fine granularity of network access control




  • System Management
    • System configuration via web browser, Telnet/SSH client and local console
    • System log and event login
    • Event Destination – Event logs will be saved to Log server, Syslog server, and USB drive
    • SNMP agent v1 / v2 / v3
    • Event notification – supports notification of SMTP email, SNMP Trap, and SMS (with additional mobile devices)
    • Backup / Restore system configuration and upgradeable firmware
    • Multi-browser support – Internet Explorer, Chrome, Firefox
    • NTP for time server synchronization
    • IPv4 / IPv6 support
    • LLDP support
    • Integrates into CC2000 software for centralized data center management
    • Integrates into CCVSR software for user session recording




  • Serial Device Management
    • Versatile serial operating modes – Console Management, Console Management Direct, Real COM Port, TCP Server/Client, UDP Server/Client, and Virtual Modem
    • Real COM driver for Windows 2000 or higher and Windows Server 2003/2008
    • Real TTY driver for Linux
    • Fixed TTY driver for UNIX*
    • Supports baud rates of 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 230400 bps




  • Language
    • Multi-language web-based GUI – available in English, German, Japanese, Korean, Russian, Simplified Chinese and Traditional Chinese

      Note:
      1. Compatible models: Cisco Catalyst 2960-C series
      2. Fixed TTY Driver supports:
      – OpenServer (Sco Unix)
      – UnixWare 7, SVR 5
      – UnixWare 2.1, SVR 4.2
      – QNX 4.25, QNX 6
      – FreeBSD
      – Solaris 10
      – AIX 5.x
      – HP-UX 11i



Add to Query Cart PDF Download

Technical Specification

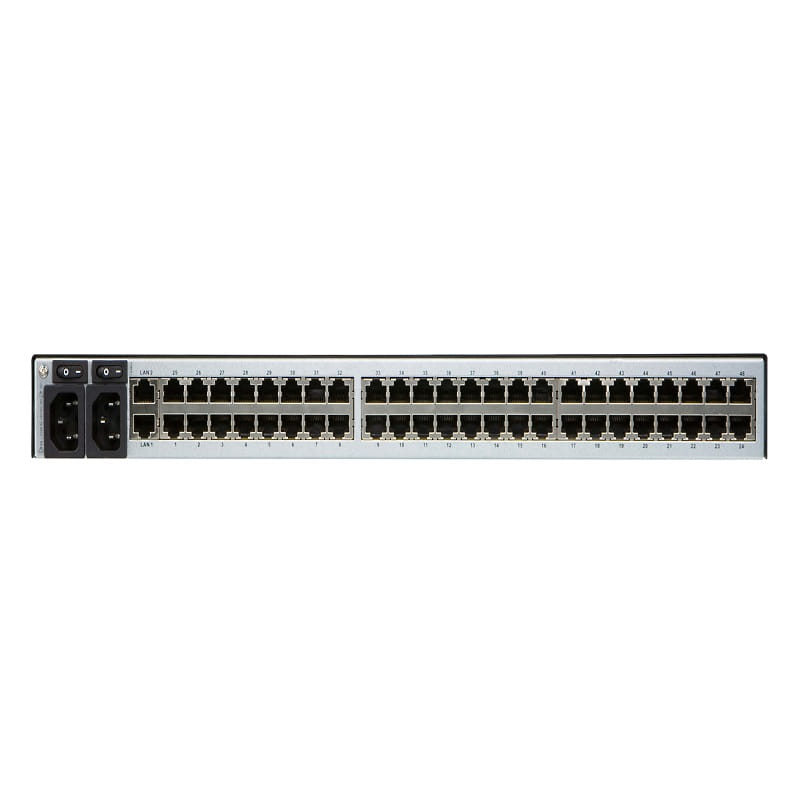

Connectors
Serial 48 x RJ-45 Female
LAN Ports 2 x RJ-45 Female
Power 2 x IEC 60320/C14
Local Console 1 x RJ-45 Female
Modem 1 x RJ-45 Female
PON 1 x RJ-45 Female
Laptop USB Console (LUC) Port 1 x Mini USB
USB Port 3 x USB Type A Female
Switches
Power 2 x Rocker Switch
Reset 1 x Recessed Pushbutton
LEDs
Serial 48 (Green)
Link N/A
10/100 Mbps N/A
10/100/1000 Mbps 2 (Red/Orange/Green)
Power 2 (Blue)
Maximum Input Power Rating 100–240VAC; 50/60Hz; 1.8A
Power Consumption AC110V:29.5W:170BTU
AC220V:29.9W:172BTU
Environmental
Operating Temperature 0 - 40˚C
Storage Temperature -20 - 60˚C
Humidity 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 4.92 kg ( 10.84 lb )
Dimensions (L x W x H) 43.72 x 32.77 x 4.40 cm
(17.21 x 12.9 x 1.73 in.)
