4 x 4 HDMI Matrix Switch

Product Code : VM0404H

Brand Category : Video Matrix Switches

Description

Connects any of four HDMI sources to any of four HDMI displays

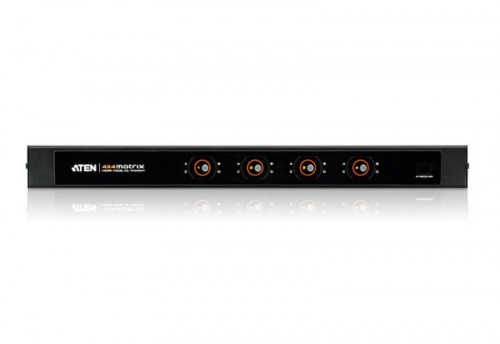

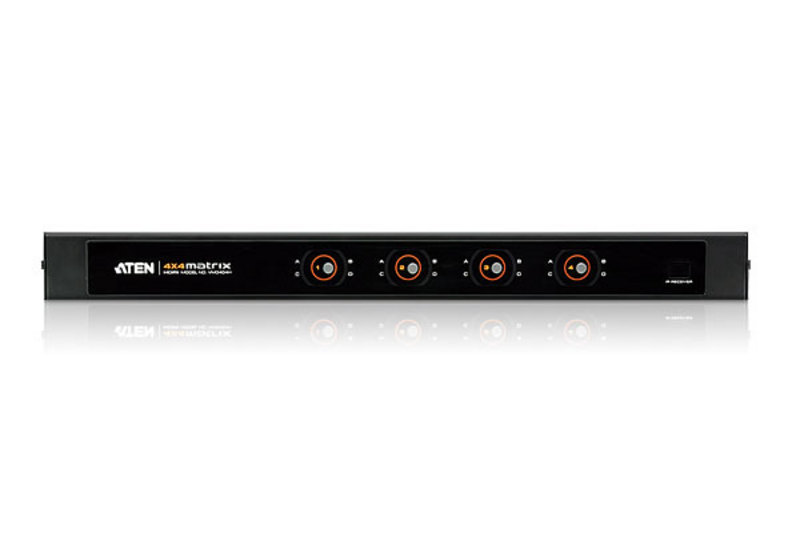

Toggle between HDMI sources and displays using remote control or front panel pushbuttons
Superior video quality – HDTV resolutions of 480p, 720p,1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200)
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
HDMI (3D, Deep Color)
Features EDID expert technology to set up different video configurations via different EDID modes
Supports Dolby True HD and DTS HD Master Audio
Up to 60 Hz refresh rate
Built-in bi-directional RS-232 serial remote port for high-end system control *
Power On Detection – if one HDMI source is powered off, the VM0404H will automatically switch to the next powered-on source
DDC compatible
Signaling rates up to 2.25 Gbits in support of 1080p display
All-metal casing
Easy and affordable way to add four HDMI inputs to your multiscreen home theater system
Rack Mountable

* Note: The VM0404H AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

Technical Specification

Video Input

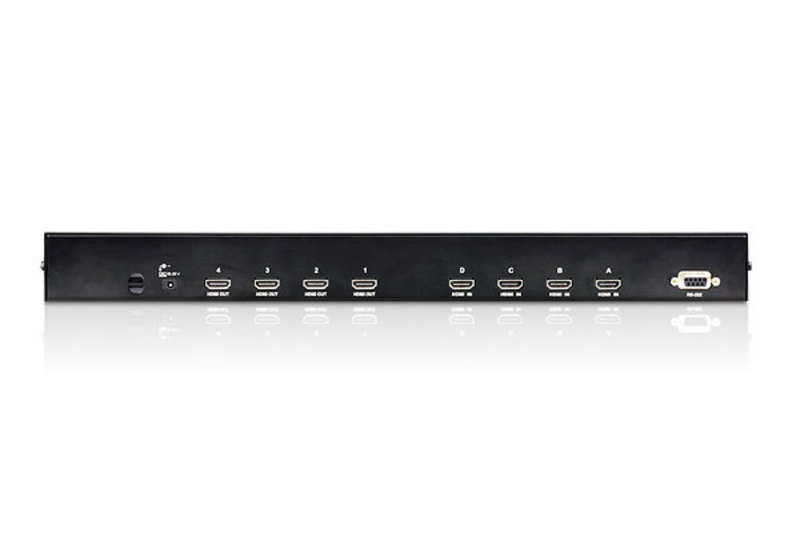

Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	1.8 m
Video Output
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	15 m
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 1080p
Max. Distance	Up to 15 m
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
EDID Settings	EDID Mode: Default / Port1 / Remix
Connectors
Power	1 x DC Jack (Black)
Power Consumption	5.3 VDC, 9W
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	1.86 kg ( 4.1 lb )
Dimensions (L x W x H)	43.70 x 15.96 x 4.40 cm (17.2 x 6.28 x 1.73 in.)
Carton Lot	3 pcs
