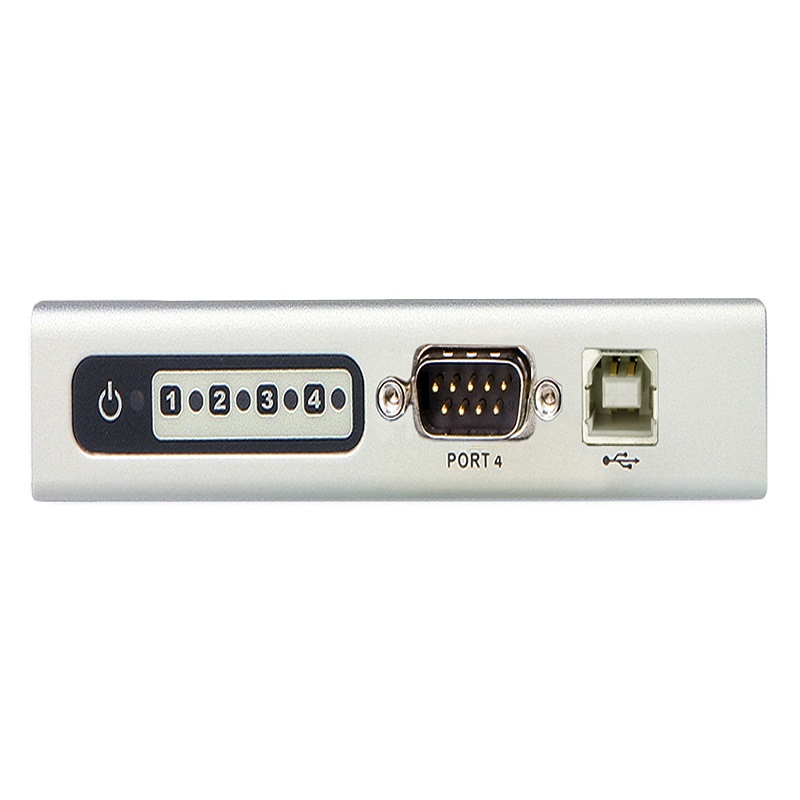

4-Port USB to RS-232 Hub

Product Code : UC2324

Brand Category : Converters

Description

Easy way to add 4 RS-232 serial ports
Fully compliant with USB 1.1; USB 2.0 compatible
Supports RS-232 serial interface
Supports automatic handshake mode
Up to 115.2 Kbps data transfer rate for each serial port
Dual data buffers for each upstream and downstream data transfer
No IRQ, DMA, I/O address resources required
Supports hot-swapping and plug-and-play
Built-in 16KV ESD protection
Supports both bus power and external power
Works with cellular phones, PDAs, digital cameras, modems and ISDN terminal adapters
OS support - Windows 2000/2003/XP/NT

Technical Specification

Device Connections	4
Connectors
USB Port	1 x USB Type B Female (White)
Power	1 x DC Jack
Serial	4 x DB-9 Male (Black)
LEDs
Ports	4 (Green)
Power	1 (Orange)
Data Rate	115.2 Kbps (max.)
USB Specification	USB 1.1 Compliant; USB 2.0 Compatible
Power Mode	Bus Powered; use of Power Adapter is optional
Power Consumption	DC5V:0.4W:2BTU
Environmental
Operating Temperature	0–50˚C
Storage Temperature	-20–60˚C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.32 kg ( 0.7 lb )
Dimensions (L x W x H)	12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
