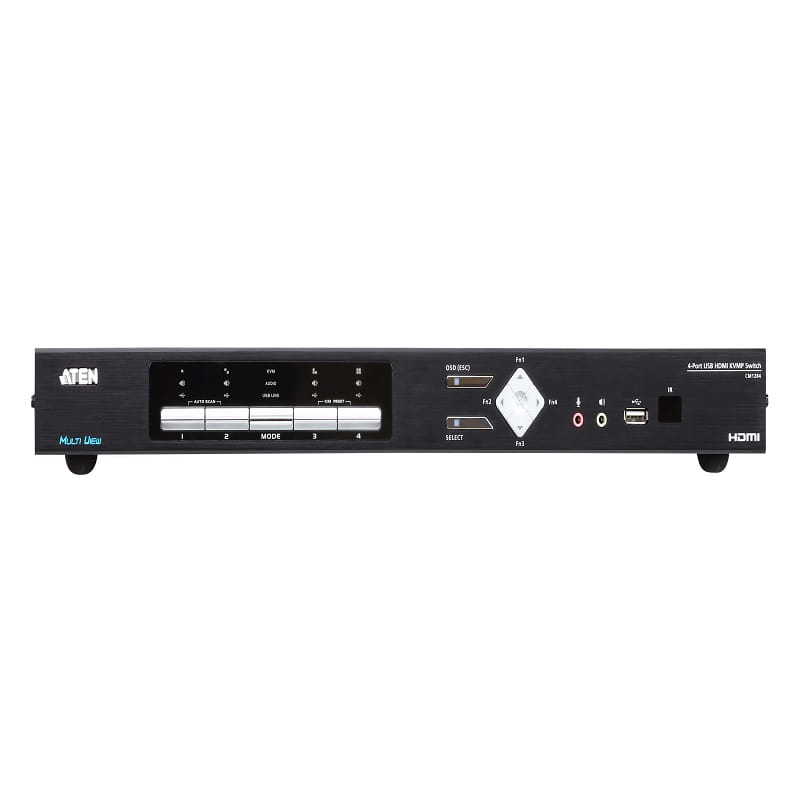

4-Port USB 4K HDMI Multi-View KVMP™ Switch

4-Port USB 4K HDMI Multi-View KVMP™ Switch

Product Code : CM1284

Brand Category : Desktop KVM Switches

Description

"

  • Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
  • Features dual output on console side – a multi-view output and a full screen output
  • Easily resizes and / or reposition any PiP or PbP to suit users’ viewing needs
  • System configuration via front panel, OSD, IR Remote, and RS-232 commands – display mode and port selection
  • Supports superior video quality – Up to 4K (4096 x 2160 @ 30 Hz) ; YCbCr 4 :2 : 2
  • Drop down menu – edit display windows and other functions with the mouse and on-screen control panel
  • Computer selection via front panel pushbutton and hotkey, mouse, and the serial commands1
  • Boundless Switching – simply move the mouse cursor across windows to switch to other video sources even among the daisy chained installation
  • Boundless Switching Focus – a window frame to indicate which computer that it currently has the focus
  • Supports Extended Desktops Boundless Switching2
  • Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes the resolution when switching among different sources
  • EDID Expert™ – Selects optimum EDID settings for smooth power- up, high-quality display and use of the best video resolution across different screens
  • DCC (Daisy Chain Control) – Controls up to 3 additional CM1284 units from a single console
  • Cascade up to 2 levels – Controls up to 16 computers (with up to 4 x 4 Multi-view mode)
  • HDCP 1.4 compliant
  • Console keyboard emulation / bypass feature that support most multimedia keyboards
  • Console mouse port emulation / bypass feature that supports most mouse drivers and multifunction mice
  • Independent switching for USB peripheral port, audio function and KVM switch focus
  • Power on detection
  • Auto Scan feature
  • Firmware upgradable via computer’s USB port
  • Full bass response provides a rich experience for 2.1 channel audio
  • Multilingual keyboard mapping – supports English, French, Japanese, and German keyboards
  • Hot-pluggable
  • Supports keyboard combinations via emulation (for Sun / Mac)3

    Note:
    1. Mouse port switching is only workable under the mouse emulation mode and applicable to 3-key USB wheel mouse only.
    2. This function is only supported by Multi-View KVMP™ Switch using firmware version v2.3.222 or later.
    3. PC keyboard combinations emulate Mac keyboard. Mac keyboard only works with their computers.

"

Add to Query Cart PDF Download

Technical Specification

Computer Connections 4
Port Selection Pushbuttons, Hotkeys, IR Remote Control, On-Screen Display (OSD), Mouse Wheel, Mouse Cursor, RS-232 Commands

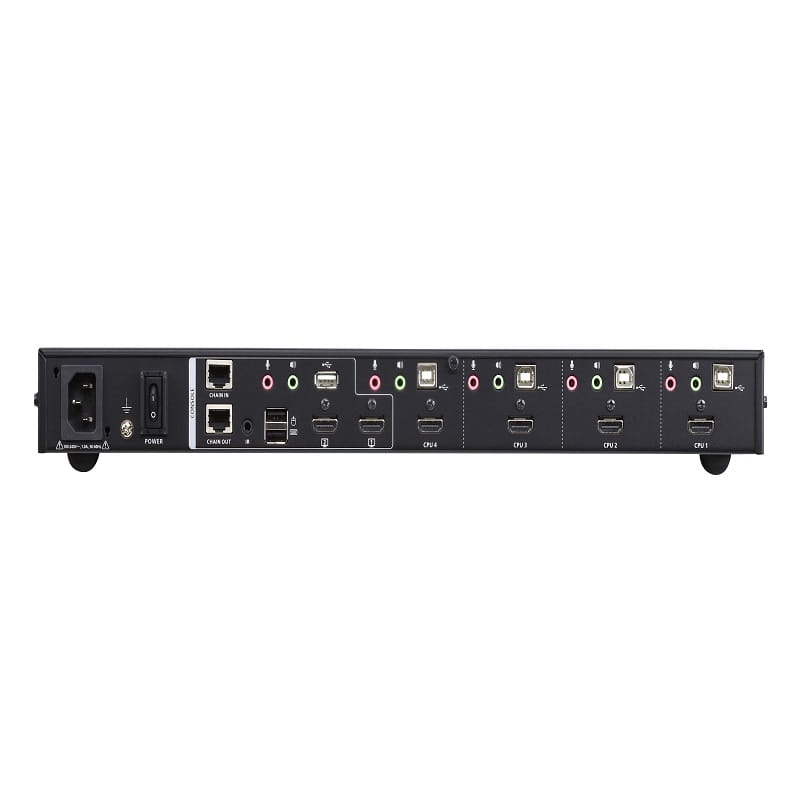

Connectors
Console Ports 2 x USB Type A Female
2 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front panel,1 x rear panel)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
2 x RJ-45
KVM (Computer) Ports 4 x USB Type B Female (White)
4 x HDMI Female (Black)
4 x 3.5mm Audio Jack Female (Green)
4 x 3.5mm Audio Jack Female (Pink)
Power 1 x IEC320 Jack
USB Hub 2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)
Switches
Selected 11 x Pushbuttons
LEDs
KVM 4 (Orange)
Audio 4 (Green)
USB 4 (Green)
Emulation
Keyboard / Mouse USB
Video 4096 x 2160 @ 30 Hz
Scan Interval 5, 10, 15, 30, 60, 90 seconds (default: 5 seconds)
Maximum Input Power Rating 100-240 VAC; 50/60 Hz; 1A
Power Consumption AC110V:16.0W:101BTU
AC220V:14.8W:95BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -10-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.46 kg ( 5.42 lb )
Dimensions (L x W x H) 43.72 x 16.40 x 4.40 cm
(17.21 x 6.46 x 1.73 in.)



HDMI Multiviewer Switch



Looking for the best quality of the HDMI Multiviewer Switch in the UAE? WTC Systems LLC offers advanced solutions designed to display multiple video sources on a single screen with seamless control and management from ATEN. Our switches are perfect for environments like broadcast studios, control rooms, and surveillance systems where monitoring multiple inputs simultaneously is crucial.



With user-friendly controls and flexible configurations, ATEN switches ensure efficient operation and easy integration into existing setups.



Select WTC Systems LLC for reliable HDMI Multiviewer Switch solutions that boost your video management abilities. Our proficiency in giving the cutting-edge technology makes sure that display demands meet with quality.

Hot Products

View more products

Frequently Asked Questions

Yes, the 4-Port USB 4K HDMI Multi-View KVMP™ Switch supports 4K resolution, ensuring clear visuals when used as an HDMI Multiviewer Switch.

An HDMI Multiviewer Switch is used in control rooms, broadcasting, security monitoring, and office setups for managing multiple systems.

The 4-Port USB 4K HDMI Multi-View KVMP™ Switch improves productivity by reducing hardware clutter and allowing easy switching between systems with an HDMI Multiviewer Switch feature.

An HDMI Multiviewer Switch displays multiple video sources on a single screen simultaneously in different layouts like split or quad view.

A 4-Port USB 4K HDMI Multi-View KVMP™ Switch lets you control four computers using one keyboard, mouse, and monitor, with 4K video support and multi-view display options.
