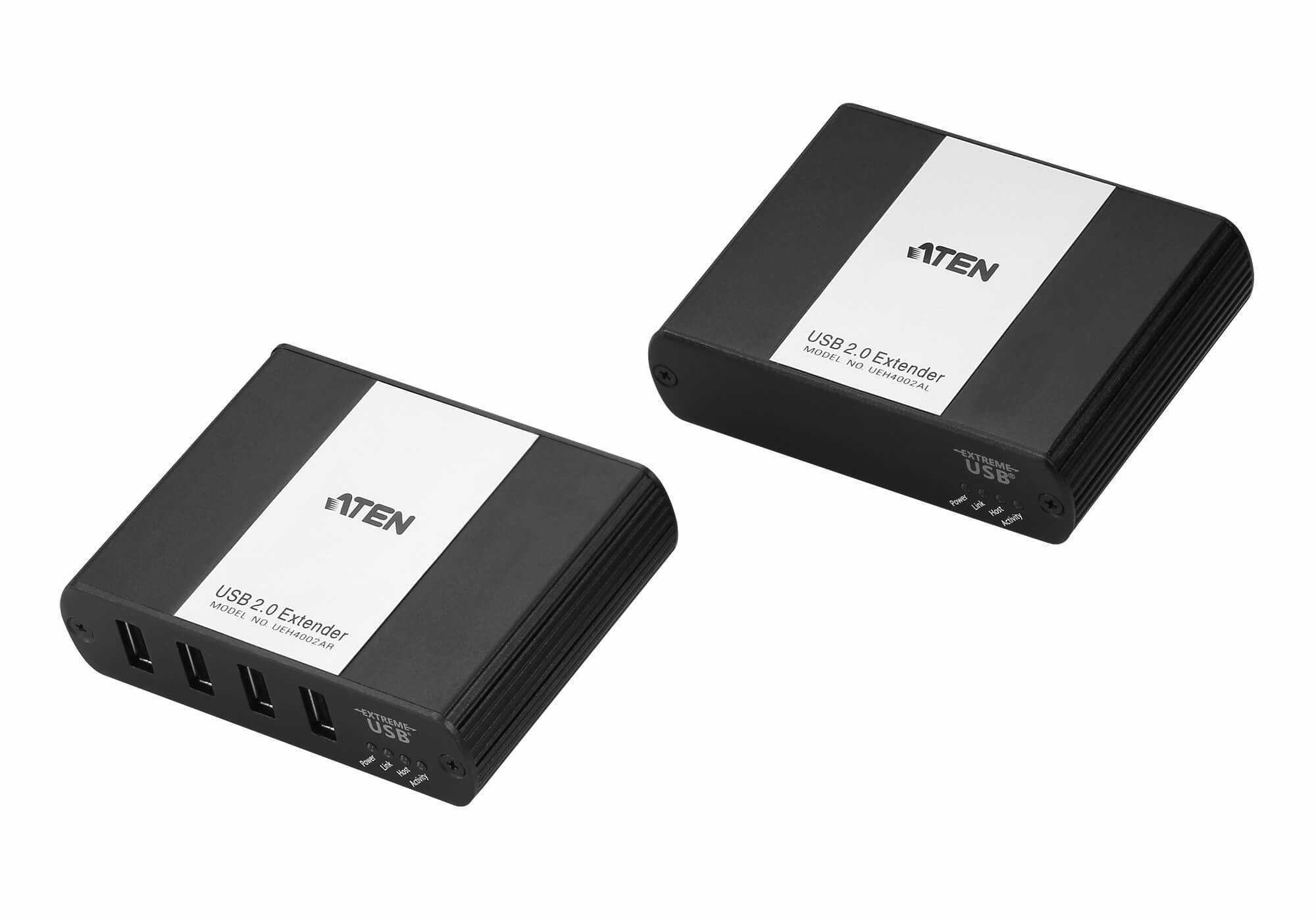

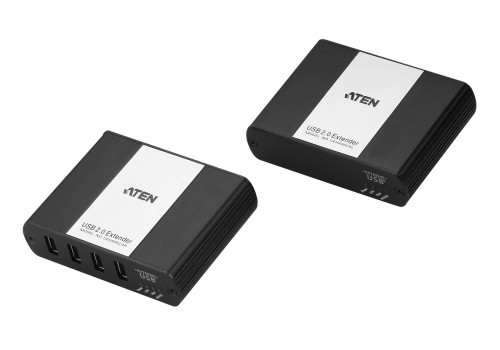

4-Port USB 2.0 CAT 5 Extender

4-Port USB 2.0 CAT 5 Extender

Product Code : UEH4002A

Brand Category : Extenders

Description

  • Extends USB transmission distance up to 100 m
  • Supports all USB 2.0 devices up to 480 Mbps
  • ExtremeUSB® – supports transparent USB 2.0 signals and true plug-and-play (no software or drivers required)
  • Fully compliant with USB Electrical and Timing
  • Works with all major operating systems: Windows®, OS X®, and Linux®

Add to Query Cart PDF Download

Technical Specification

FunctionUEH4002ALUEH4002AR
Connectors
USB Port1 x USB Type B Female4 x USB Type A Female
Link1 x RJ45 Female1 x RJ-45 Female
PowerN/A1 x DC Power Jack
USB SpecificationUSB 2.0 High/Full/Low SpeedUSB 2.0 High/Full/Low Speed
USB Devices SupportedN/A4 USB Devices
Power ConsumptionDC5V:2.5W:12BTUDC5V:15W:66BTU
Environmental
Storage Temperature-20°C to 70°C-20°C to 70°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Operating Temperature0°C to 50°0°C to 50°
Physical Properties
Weight0.17 kg ( 0.39 lb )0.19 kg ( 0.42 lb )
HousingMetalMetal
Dimensions (L x W x H)10.00 x 7.60 x 2.60 cm
(3.94 x 2.99 x 1.02 in.)		10.00 x 7.60 x 2.60 cm
(3.94 x 2.99 x 1.02 in.)
