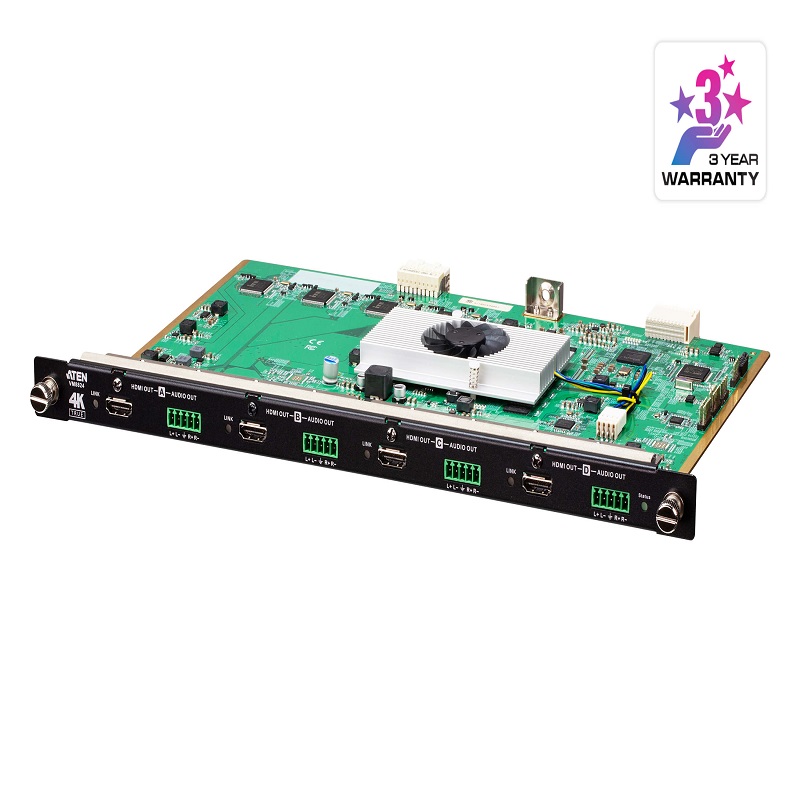

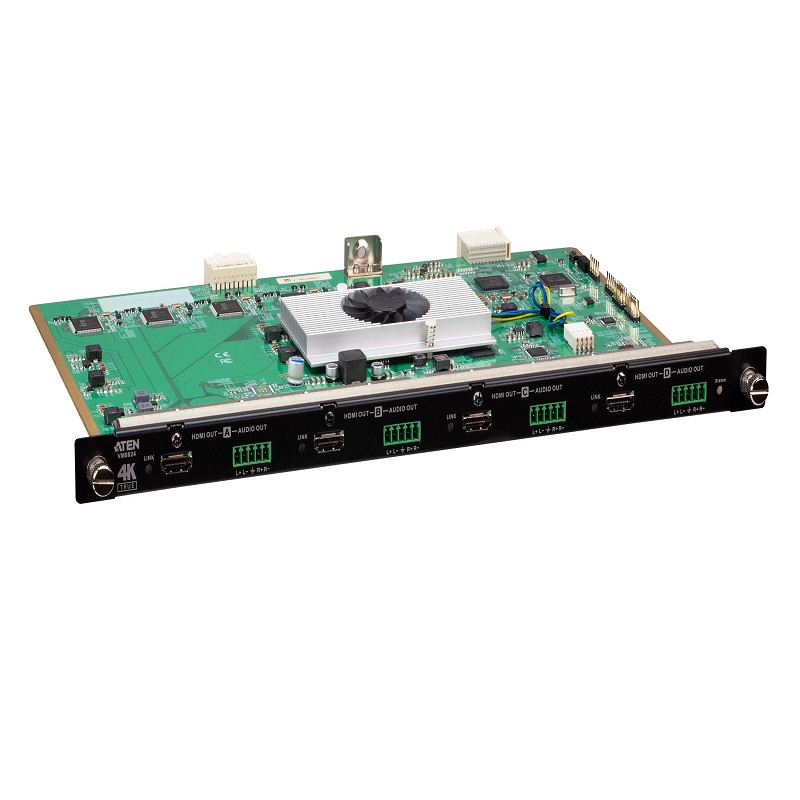

4-Port True 4K HDMI Output Board with Scaler

Product Code : VM8824

Brand Category : Video Matrix Switches

Description

Compatible with the VM Modular Matrix Switches; mix and match with modular I/O boards of any type for optimum flexibility
True 4K Resolutions – handles uncompressed video resolutions up to 3840 x 2160 / 4096 x 2160 @ 60Hz (4:4:4)*
4K Scaler – features a video scaling function to integrate a video wall seamlessly with various output video resolutions
Seamless Switch™ – features close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions*
Video Wall – allows you to create custom video wall layouts via intuitive web GUI*
True 4K EDID Expert – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Audio-enabled, HDMI audio can be extracted and stereo audio can be embedded
Cable Quality Tester – examines the HDMI cable quality
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
Consumer Electronics Control (CEC) support
*Note:
1. True 4K resolutions are only supported when the VM7824 and VM8824 are used with the VM3250.
2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e.1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
3. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

Technical Specification

Video Output
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	Up to 5.0m
Video
Max. Data Rate	18.0 Gbps (6.0 Gbps Per Lane)
Max. Pixel Clock	600 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible Consumer Electronics Control (CEC)
Max. Resolution	4096x2160/3840x2160@60Hz (4:4:4)
Audio
Output	4 x Captive Screw Connector, 5 pole * Audio signal type: stereo, balanced/unbalanced.
Power Consumption	44.83W:210BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.65 kg ( 1.43 lb )
Dimensions (L x W x H)	35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
Carton Lot	2 pcs
