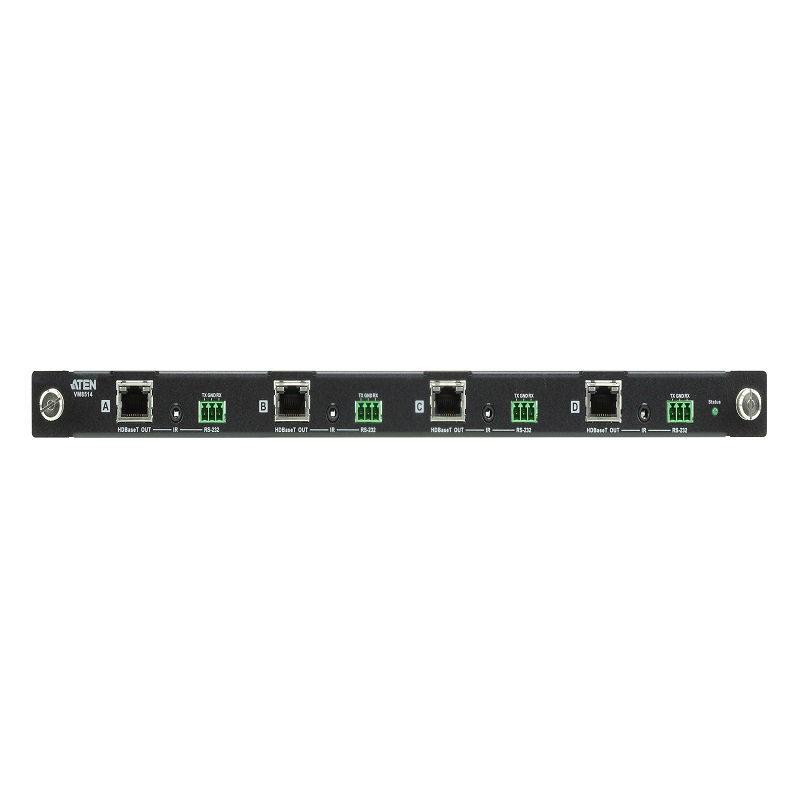

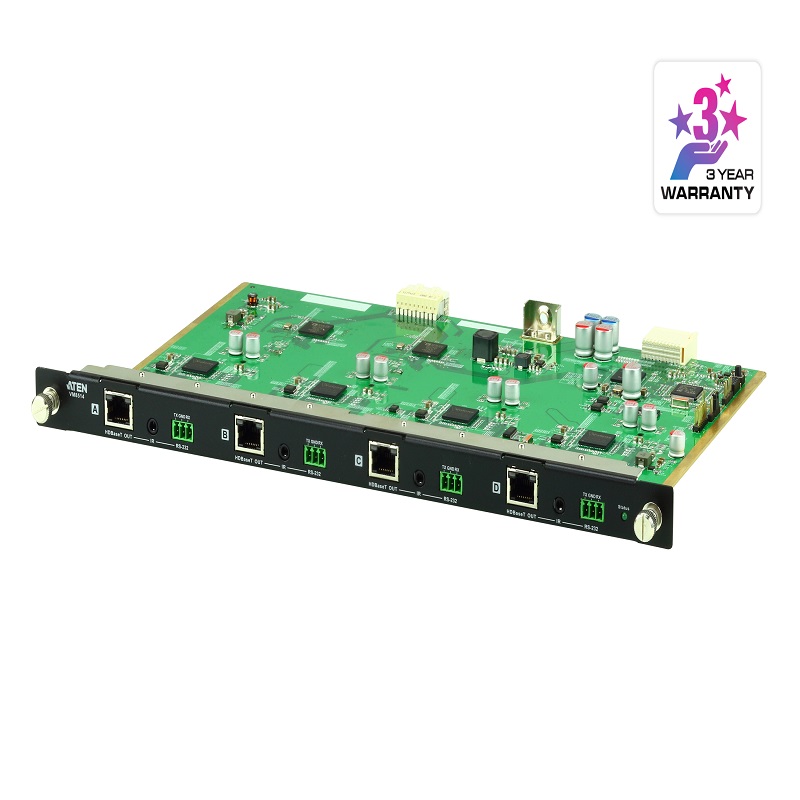

4-Port HDBaseT Output Board

Product Code : VM8514

Brand Category : Video Matrix Switches

Description

4-port HDBaseT Output Board that is compatible with the VM1600A/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology
Connected to VE805R/VE816R:
• Seamless Switch™ – features close-to-zero-second switching, continuous video streams, real-time switching and stable signal transmissions
• Video Wall – features configurable video wall profiles for custom layouts via point-n-click web GUI
Bi-directional IR channel – IR transmission is processed one direction at a time
Hot-swappable design for easy integration of I/O boards

Technical Specification

Video Output
Interfaces	4 x RJ-45 Female (Silver)
Impedance	100 Ω
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps per lane)
Max. Pixel Clock	340 MHz
Compliance	HDBaseT, HDCP 1.4 compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance	100 m (Cat 6a)
Control
RS-232	4 x Captive Screw Connectors, 3 pole
IR	4 x Mini Stereo Jack Female (Black)
Power Consumption	12.2W:57BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.97 kg ( 2.14 lb )
Dimensions (L x W x H)	35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.)
