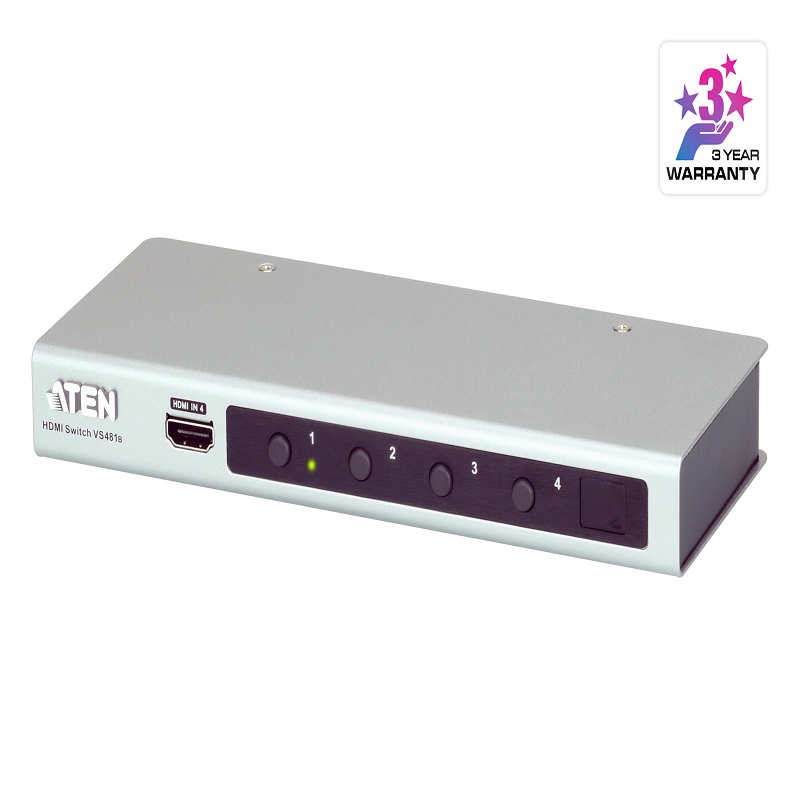

4-Port 4K HDMI Switch

Product Code : VS481B

Brand Category : Video Switches

Description

Allows up to four HDMI A/V sources to be connected to one HDMI display

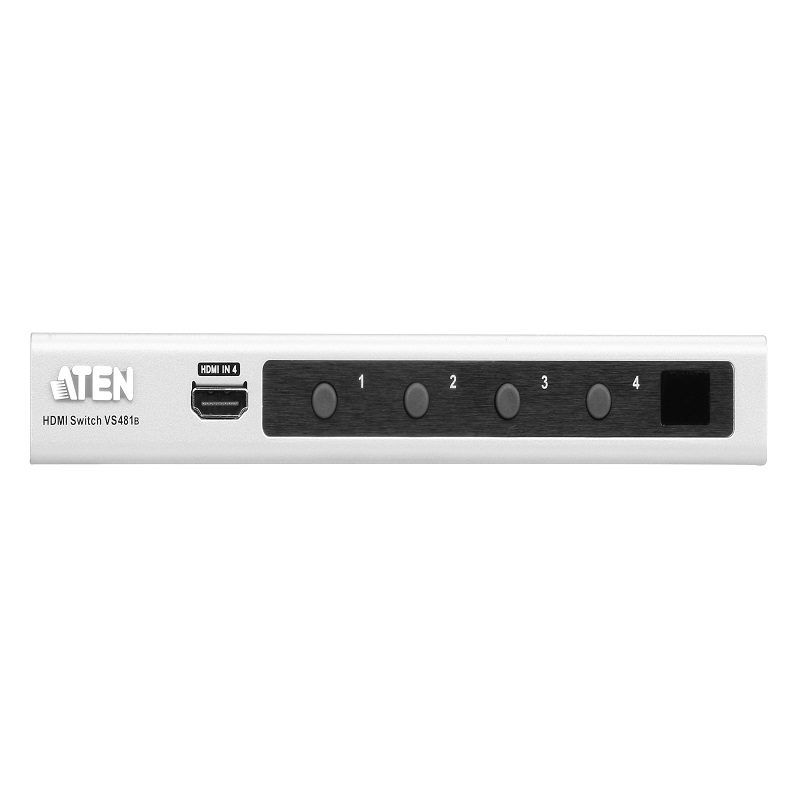

Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
Supports 340MHz bandwidth for ultrahigh 4kx2k video
HDMI (3D, Deep Color, 4kx2k); HDCP compatible
Auto switching modes for auto port selection
Long distance transmission – up to 15 m (24 AWG)
Consumer Electronics Control (CEC) support
Supports Dolby True HD and DTS HD Master Audio
Built-in bi-directional RS-232 serial remote port for high-end system control
Instant switching between HDMI input sources
Supports IR extension using a IR extension cable *
LED indication of video source devices

Note: The IR extension cable (Part No. 2XRT-0003G) is not included inthis package.

Technical Specification

Video Input
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	3m @3840x2160@30 (4:4:4)
Video Output
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	15m @3840x2160@30 (4:4:4)
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps per lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, Deep Color, 4K) HDCP Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
Connectors
Power	Connector: 1 x DC Jack
Power Consumption	DC5V:1.76W:8BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.48 kg ( 1.06 lb )
Dimensions (L x W x H)	20.00 x 8.25 x 2.50 cm (7.87 x 3.25 x 0.98 in.)
Carton Lot	10 pcs
