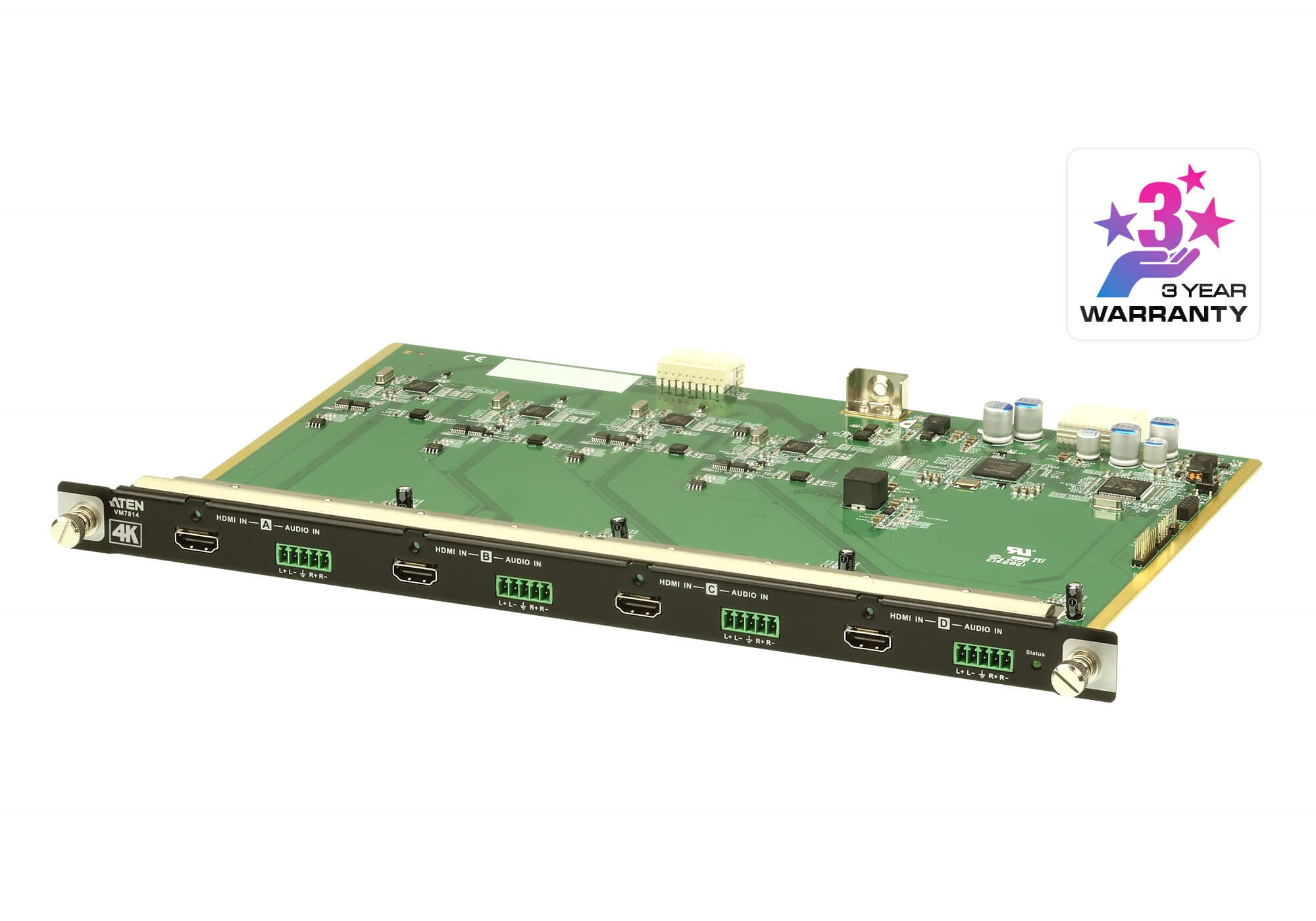

4-Port 4K HDMI Input Board

4-Port 4K HDMI Input Board

Product Code : VM7814

Brand Category : Video Matrix Switches


Description


  • 4-port 4K HDMI Input Board that is compatible with the VM1600/VM3200 and can be mixed with modular I/O boards of any type for optimum flexibility
  • Superior video quality – HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080); 4K2K@60 (4:2:0)
  • Audio-enabled, stereo audio can be embedded
  • EDID Expert – selects optimum EDID settings for smooth power-up and the highest quality display
  • HDMI (3D, Deep Color); HDCP 2.2 Compatible
  • Cable Quality Tester – examines the HDMI cable quality
  • Consumer Electronics Control (CEC) support

Add to Query Cart PDF Download


Technical Specification


Video Input

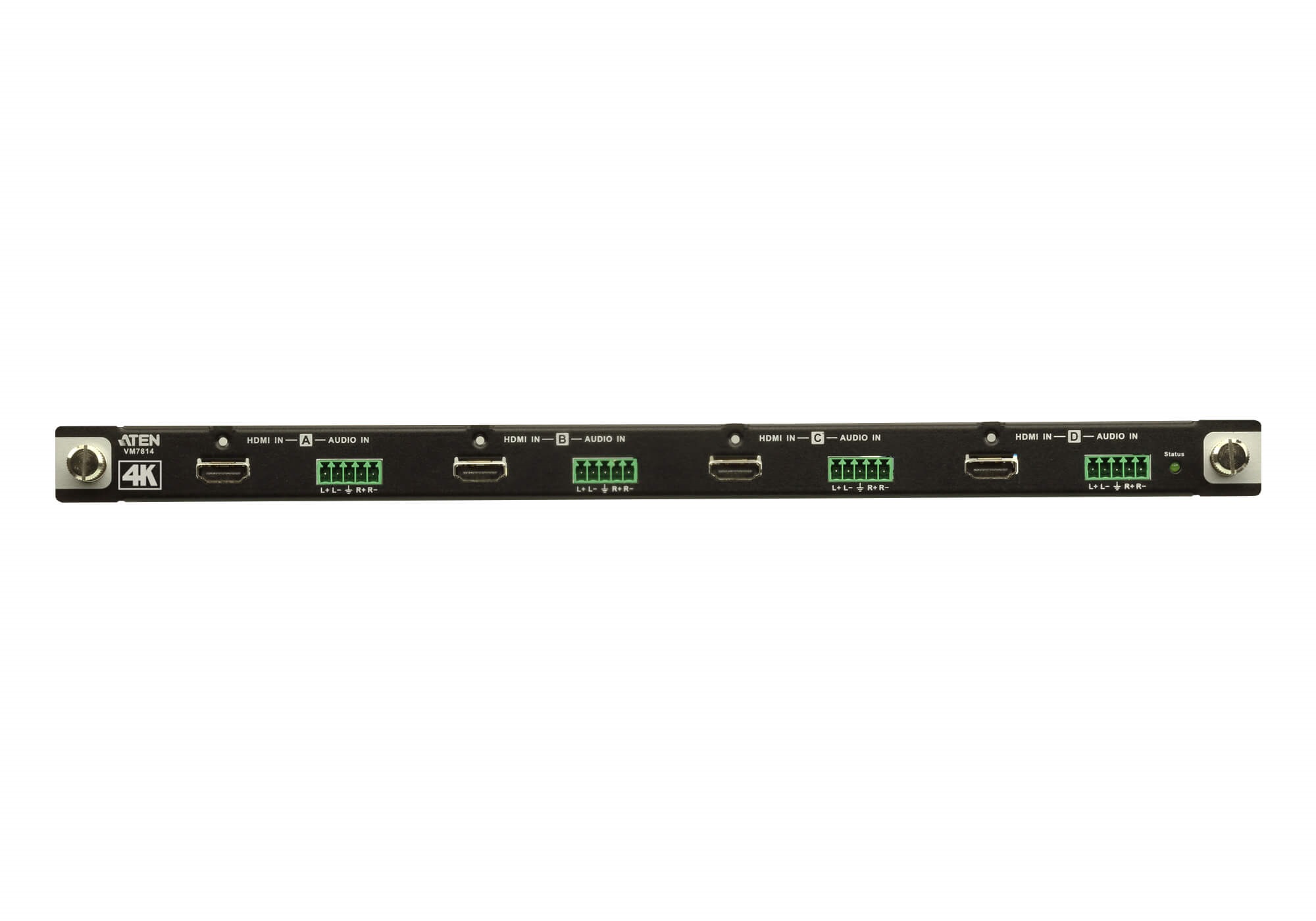

Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance Up to 5m
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolution 4096x2160/3840x2160@60Hz (4:2:0);
4096x2160/3840x2160@30Hz (4:4:4)
Audio
Input 4 x Captive Screw Connector, 5 Pole (Green)
*Audio signal type: stereo, balanced/unbalanced.
Power Consumption 4.45W:21BTU
Environmental
Operating Temperature 0 - 40°C
Storage Temperature -20 - 60°C
Humidity 0 - 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.56 kg ( 1.23 lb )
Dimensions (L x W x H) 35.20 x 23.80 x 2.33 cm
(13.86 x 9.37 x 0.92 in.)
Carton Lot 2 pcs
