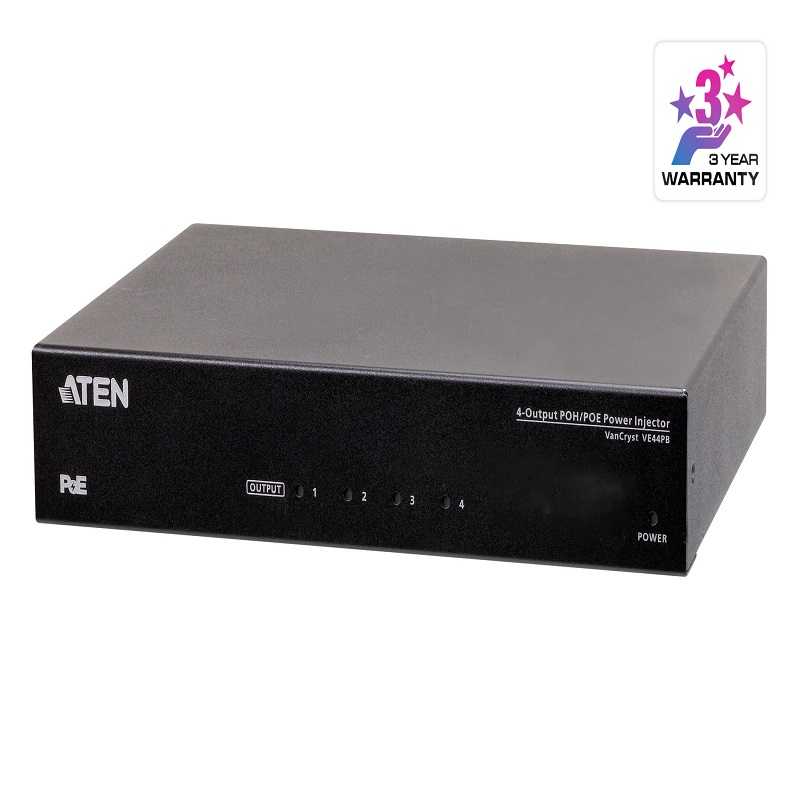

4-Output PoH/PoE Power Injector

Product Code : VE44PB

Brand Category : Video Extenders

Description

Supplies power for up to four ATEN Power-over-HDBaseT (PoH) /Power-over-Ethernet (PoE) compatible products over Cat 5e/6/6a cables
HDBaseT connectivity – extends HDMI connection over a long distance via Cat 6/6a cable
Offers a data rate up to 10.2Gbps which is compatible with ATEN HDBaseT PoH PD products
• Compatible ATEN PoH-powered/PoE-powered models:
VE2812AT, VE2812AEUT, VE2812AUST, VE1812R, VE802R, VK108US, VK112EU, VK224, VK236, VK248, KE8952, or future ATEN PoH-powered/PoE-powered products which follow IEEE 802.3 af standard
Built-in 8KV/15KV ESD protection
Plug-and-play without additional settings
Rack-mountable
Supplies up to 15.4W of power per PSE port

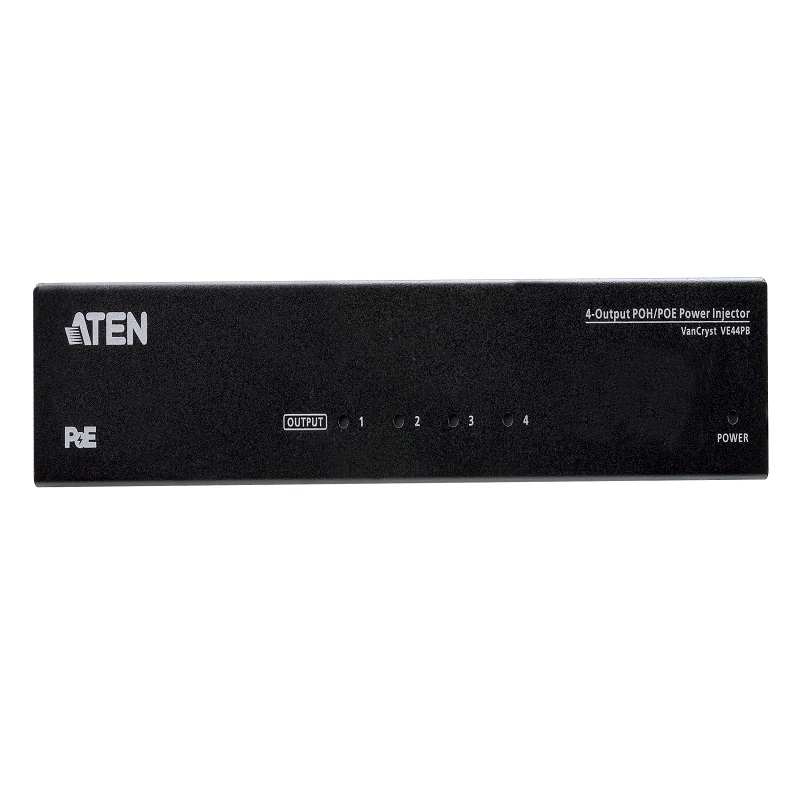

Status LEDs to provide an at-a-glance overview of device status, improving real-time monitoring and troubleshooting
Assured signal quality – usage of the VE44PB power injector does not affect the signal quality of the video, audio, bi-directional RS-232, and Ethernet transmission*
*The transmission distance maybe reduced to 80% of the original distance.

Technical Specification

Video
Max. Data Rate	10.2Gbps per port (Support HDBaseT POH PD ready models)
Connectors
Input	4 x RJ-45 Female
Output	4 x RJ-45 Female (with POH/POE PSE)
Power	1 x 3-Prong AC Socket
Switches
Power	1 x On/Off Switch
Power
Maximum Input Power Rating	100-240 VAC; 50-60 Hz
Power Consumption	AC110V:1.2W:294BTU AC220V:1.1W:293BTU
Environmental
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	1.23 kg ( 2.71 lb )
Dimensions (L x W x H)	21.50 x 16.12 x 4.18 cm (8.46 x 6.35 x 1.65 in.)
