4-Key Contact Closure Remote Pad

4-Key Contact Closure Remote Pad

Product Code : VPK104

Brand Category : Presentation Switches

Description

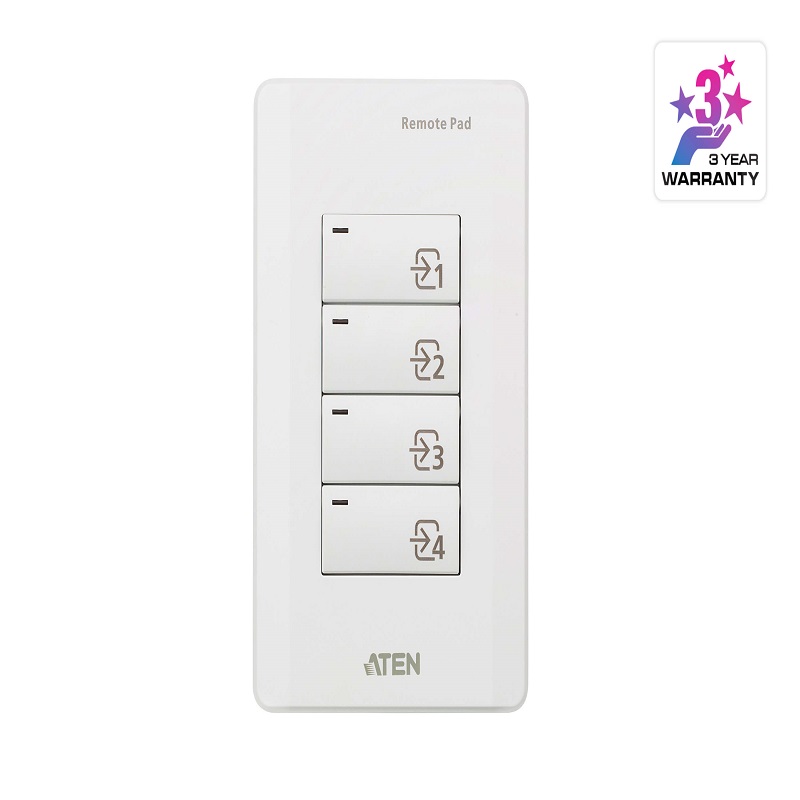

  • 4-button contact closure remote control pad for ATEN VP1420/VP1421 Presentation Matrix Switches
  • Easy connection via contact closure; no extra power source required
  • 4-pole captive screw connectors for ease of installation
  • LED lights for port selection status indication
  • Engraved buttons for intuitive port indication and operation

Add to Query Cart PDF Download

Technical Specification

Interfaces
Keypad Layout4 buttons
Control

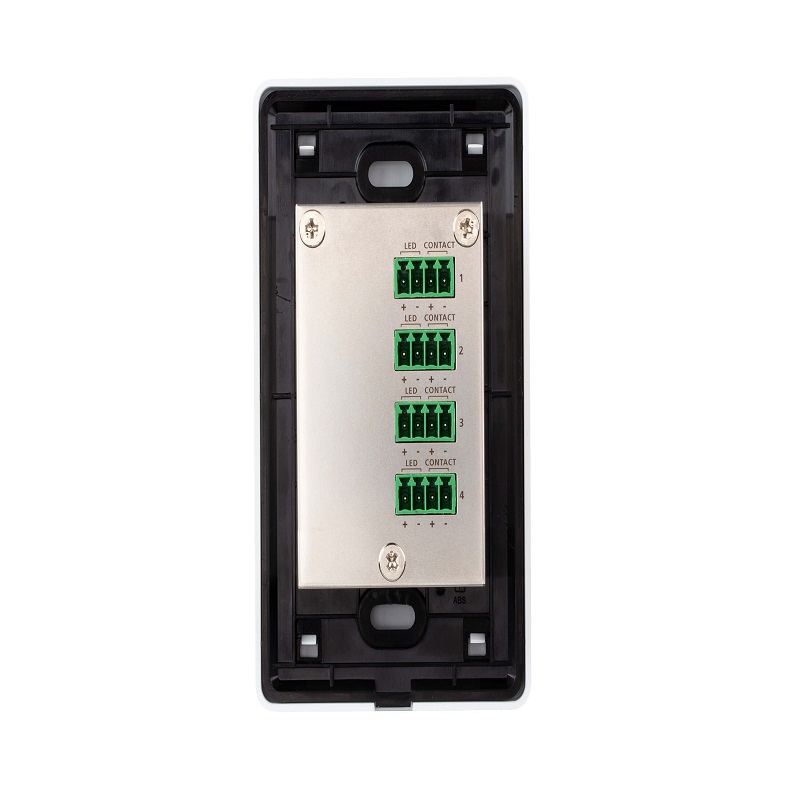

Contact Out4 xCaptive Screw Connector, 2 pole
LED In4 xCaptive Screw Connector, 2 pole
Environmental
Operating Temperature0 – 50°C
Storage Temperature–20 – 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingPlastic
Weight0.13 kg ( 0.29 lb )
Dimensions (L x W x H)11.63 x 7.06 x 4.78 cm
(4.58 x 2.78 x 1.88 in.)
Faceplate Dimensions (L x W x H)11.92 x 7.42 x 0.92 cm
(4.69 x 2.92 x 0.36 in.)
