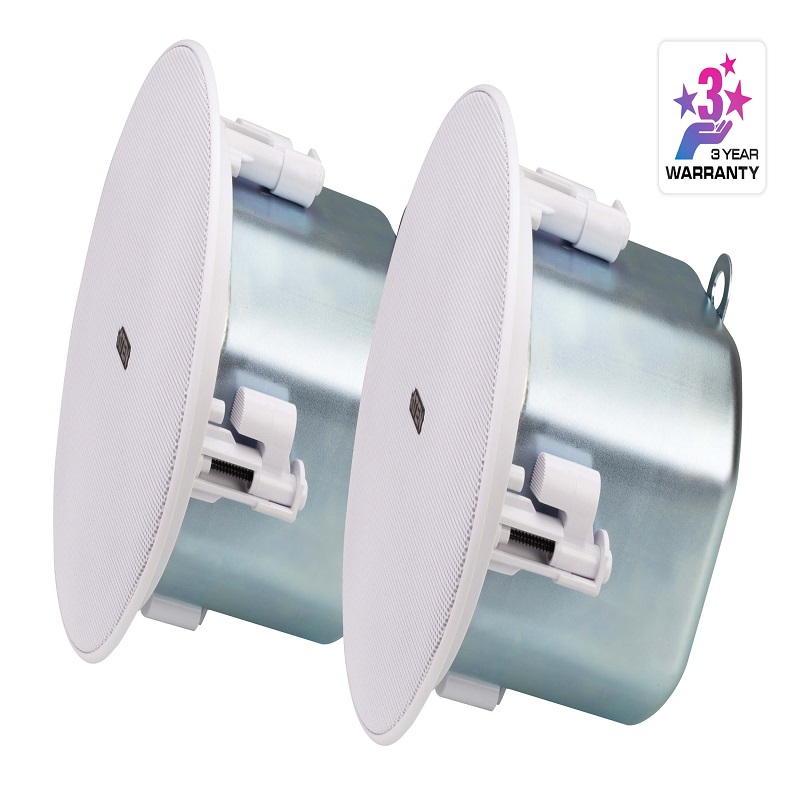

4" Coaxial Ceiling Loudspeaker

Product Code : AS104

Brand Category : Audio

Description

  • Please note the AS104s are sold in pairs.
    • Coaxial design with premium components:
      – 4” high output driver with rubber surround and heavy-duty voice coil
      – 20 mm dome tweeter
    • 100 – 20 kHz bandwidth with wide coverage for consistent, full-range coverage of the space while reducing the amount of the speakers needed
    • Switchable for use as either an 8 Ω low-impedance speaker or as part of a 70V / 100V distributed loudspeaker system
    • UL94-V0 compliance for life safety applications
    • Paintable magnetic grille for blending into any room decor
    • Ease of installation guaranteed with the magnetic grille, dog leg mounting system and cutout template

Add to Query Cart PDF Download

Technical Specification

System Specification
Transformer Taps 70V(2.5W, 5W, 10W, 20W)
100V(*, 5W, 10W, 20W)
Sensitivity 86dBSPL, @1m, 1W, 1kHz
Rated Power 30Wrms/60Wpeak
Distortion <=5%
Frequency Response 100~20kHz (-10dB)
LF Driver 4" Paper Cone with Rubber Suspension
HF Driver 20mm PEI Dome Tweeter
Compliance
Certification CE, WEEE, RoHs
Connectors

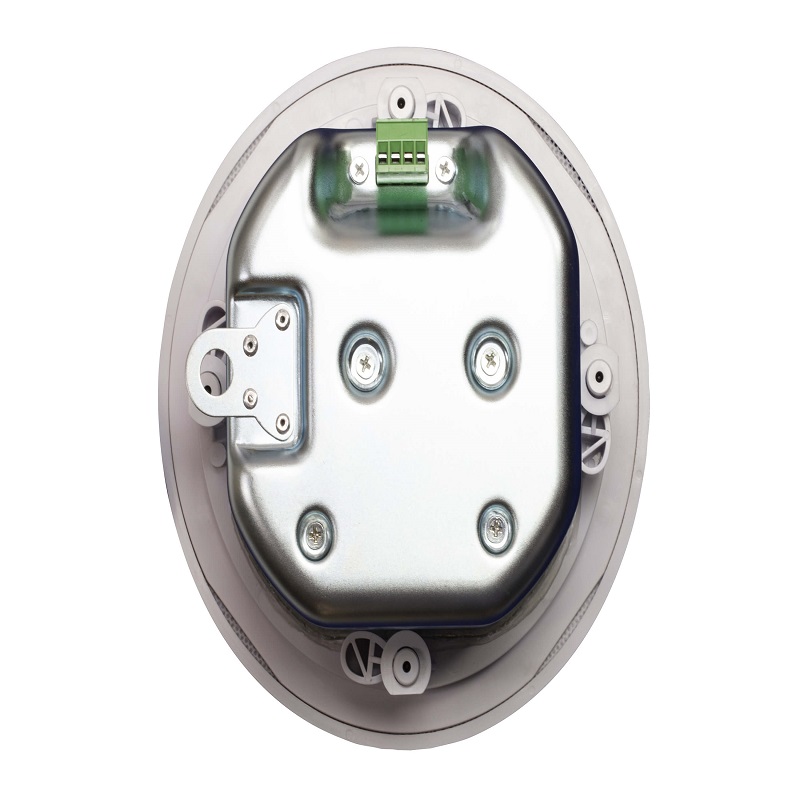

Audio Inputs 5.08mm Euroblock Connector
Environmental
Operating Temperature 0 - 40°C
Humidity 0 - 80% RH, Non-Condensing
Storage Temperature -20 - 60°C
Physical Properties
Weight 2.20 kg ( 4.85 lb )
Housing UL94-V0 ABS Plastic Baffle
Zinc-Coated Steel Backcan
Dimensions (L x W x H) 21.80 x 21.80 x 13.00 cm
(8.58 x 8.58 x 5.12 in.)
Cut-out Diameter 182mm
In-ceiling Clearance Height 125mm
Color White Speaker Grille (Paintable)
White Speaker Baffle
Carton Lot 2 Pcs/Carton
Note This product is sold in pair
