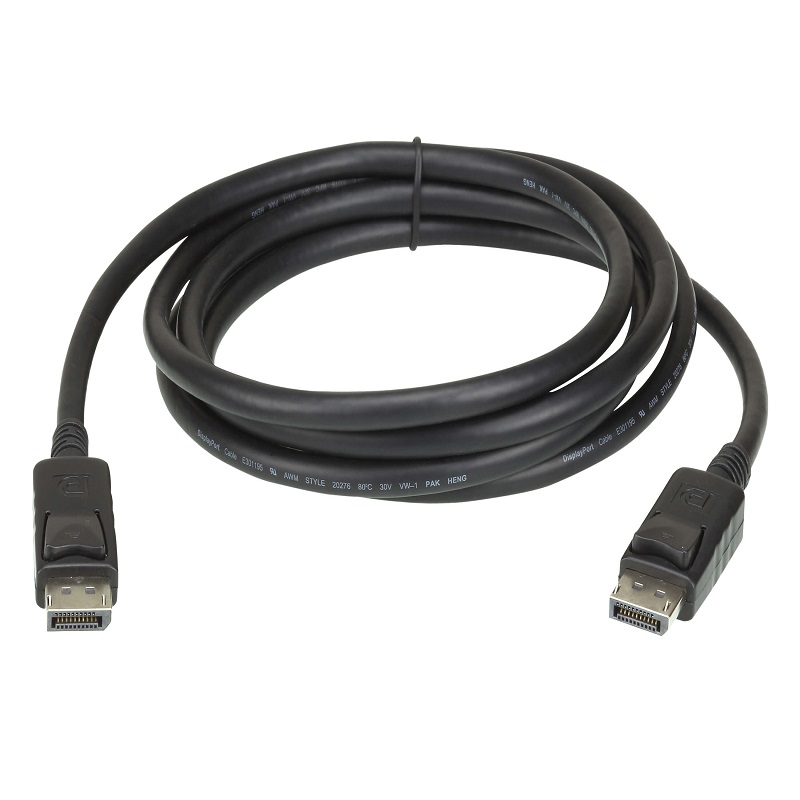

4.6 m DisplayPort rev.1.2 Cable

4.6 m DisplayPort rev.1.2 Cable

Product Code : 2L-7D04DP

Brand Category : DisplayPort Cables

Description

"
  • Crystal-clear video up to 4K UHD (3840 x 2160 @ 60Hz)
  • Multi-Stream Transport (MST) support
  • Supports bandwidth up to 21.6 Gbps
  • Supports dual monitors in mirror and extended mode
  • Multiple strands of tinned copper wire to enhance EMI protection
  • RoHS compliant
"

Add to Query Cart PDF Download

Technical Specification

Max. Video Resolution3840x2160@60Hz
Physical Properties
Cable Length4.6M
Cable ColorBlack
Cable Outer Dimension8.0 ± 0.2mm
Conductor Gauge26AWG
Conductor MaterialTinned Copper
Connector PlatingNickel
Connector TypeDisplayPort (20 pin) Male to Male
Cable Shield TypeAluminum Magnesium Alloy
Cable Jacket TypePVC
Environmental
Operating Temperature80℃
RatingUL VW-1 (Flame rate), CSA
