305M Low Skew Cat 5e Cable

Product Code : 2L-2801

Brand Category : Cat 5 Cables

Description

Supports high quality RGB video transmission
350 MHz bandwidth
Contains 305 m/1000 ft of low skew cable

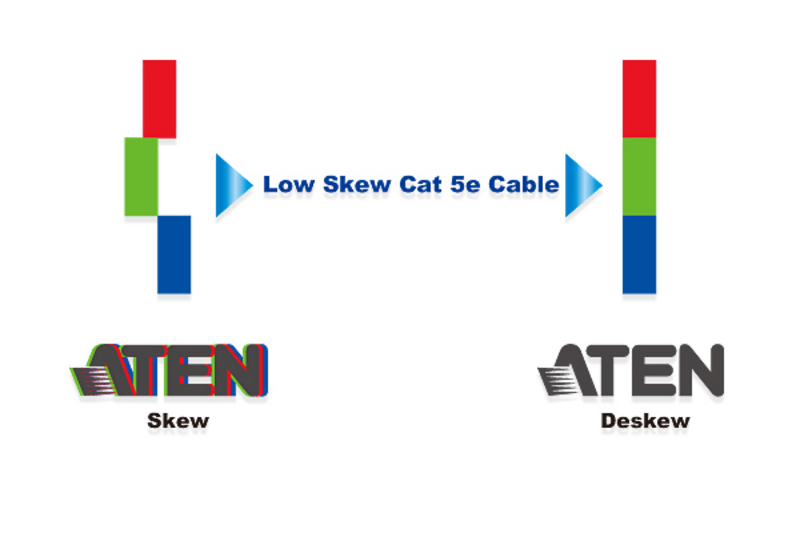

Delay Skew: 1 ~ 350 MHz 20nS/100m Max.

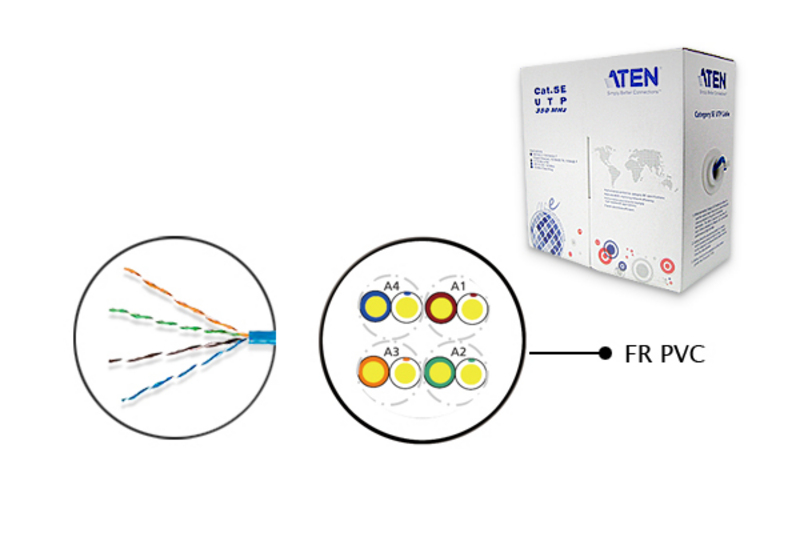

Outer Jacket Material: FR PVC
Outer Shield Material: Unshielded
Conductor Material: 24 AWG solid bare copper
Compatible with ATEN analog Cat 5 video extenders, KVM extenders, and Cat 5 KVM switches
UL, ETL approved

Technical Specification

Item	24AWG × 4p
Cable Length	305 m/ 1000 ft
Conductor Resistance	9.38 Ohm/100m/20°C Max.
Mutual Capacitance	56 Pf/M Max.
Dielectric strength	Ac 1.5 Kv/2 Sec.
Spark Test	2.5 Kv
Insulation
Unaged	Tensile Strength: 2400 Psi Min. (1.69 Kg/M(mxm)) Elongation: 300% Min.
Aged	Tensile Strength: Unaged Min. 75%(100°C×48hrs) Elongation: Unaged Min. 75%(100°C×48hrs)
Jacketed
Unaged	Tensile Strength: 2000 Psi Min.(1.41 Kg/M(mxm)) Elongation: 100% Min.
Aged	Tensile Strength: Unaged Min. 85%(100°C×240hrs) Elongation: Unaged Min. 50%(100°C×240hrs)
Insulation Shrinkback	150m/M, 121°C±1°C×1hr≦9.5m/M
Cold Bend Test	-20°C×4hrs No.Crack
Flame Retardant Test	CMR
Ac Leakage Current Througt Overall Jacket	Ac 1500v≦10 Ma
Dc Resistance Unbalance	5% Max.
Pair-To-Ground Capacitance Unbalance	330 Pf/100m Max.
Characteristic Impedance	1 - 350 Mhz 100±15 Ohms
Structural Return Loss	350 Mhz 10.6db Min.
Propagation Delay	350 Mhz 536ns/100m Max.
Delay Skew	1 - 350 Mhz 20ns/100m Max.
Physical Properties
Weight	9.80 kg
