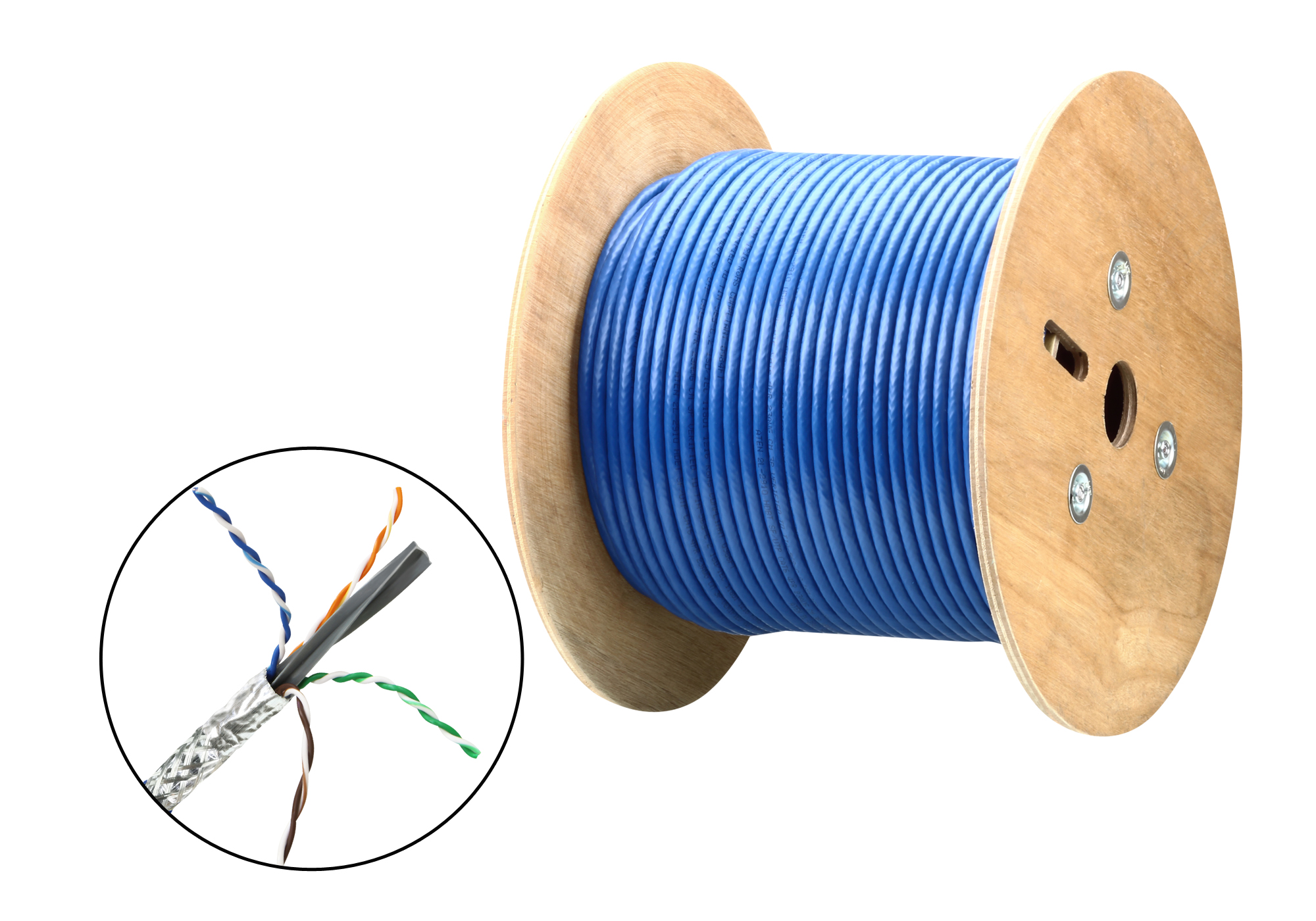

305M HDBaseT SF/UTP CAT 6 Cable

Product Code : 2L-2910

Brand Category : Cat 5 Cables

Description

Optimized for multiple distributions including HD video, audio, Ethernet, power and control
Certified to meet performance requirements set by HDBaseT Alliance
Supports sweep frequency up to 400 MHz
Supports up to 4K data transmission
Conductor material: 23 AWG bare copper
Outer shielded material: AI Mylar tape
Braid wire: tinned copper
Flame test UL 1685 (CM rated), RoHS compliant
Compatible with ATEN HDBaseT extenders and splitters
Regulatory:
• PoE: IEEE 802.3af (PoE)/ IEEE 802. 3at (PoE+)
• Electrical Transmission: ANSI/TIA-568-C.2 (2009), ISO/IEC 11801 (Edition 2.2), IEC 61156-5 (Edition 2.1)
• Material and Construction: UL 444, CSA 22.2 NO.214
Resistant to electromagnetic interference (EMI) / radio frequency interference (RFI) brought by walkie-talkies or any other radio devices to prevent AV signal from disturbance.

Technical Specification

Cable Type	Cat 6 SF/UTP
Conductor
Size	23 AWG
Construction	Solid Bare copper
Number of Pairs	4
Shield
Material	AI Mylar tape
Coverage	100% Coverage and mylar side facing out
Insulation
Material	Polyolefin
Color codes	Blue & White/Blue stripe 1.08 ± 0.02 mm Orange & White/Orange stripe 1.05 ± 0.02 mm Green & White/Green stripe 1.08 ± 0.02 mm Brown & White/Brown stripe 1.05 ± 0.02 mm
Filler	Polylefin (PO)
Braid	Tinned Copper
Jacketed
Material	Polyvinyl chloride (PVC)
Average Thickness	0.5 mm+-0.05mm
Diameter	7.4 ± 0.20 mm
Color	Blue
Electrical
Dc Resistance Unbalance	≤ 5%
Conductor Resistance	≤ 9.38 Ω/100m
Dielectric strength	1.5 KV ac for 2 s
Insulation resistance	≥ 5000 MΩ•km
Mutual Capacitance	≤ 5.6 nF/100m
Pair-To-Ground Capacitance Unbalance	≤ 330 pF/100m
Ac Leakage Current Througt Overall Jacket	≤ 10mA (1.5KV AC)
Spark Test	2.5 KV DC
Minimum bending radius	≥4 times of overall diameter
Delay Skew	45.00 Max.ns/100m
Environmental
Temperature (Operating / Storage)	-20°C to 60°C
Physical Properties
Weight	17.57 kg ( 38.7 lb )
Cable Length	305m / 1000ft
