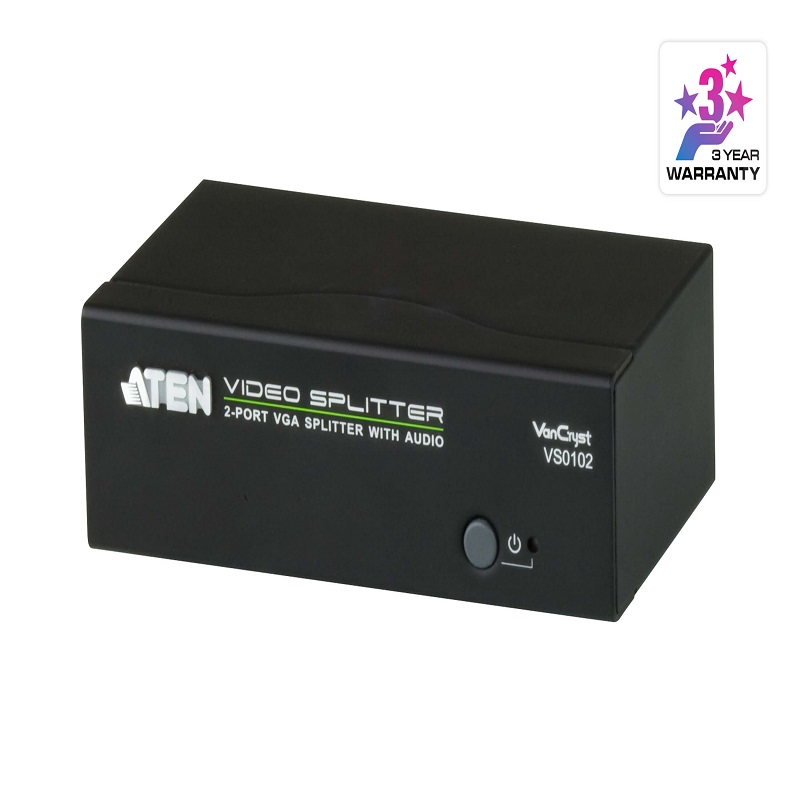

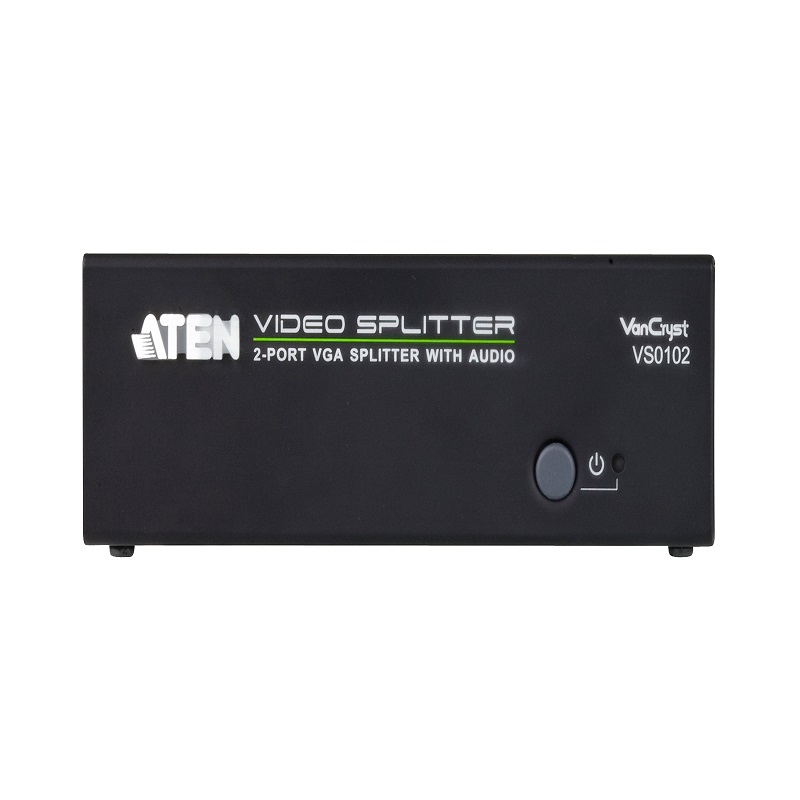

2-Port VGA/Audio Splitter (450MHz)

Product Code : VS0102

Brand Category : Video Splitters

Description

One video input to 2 video outputs
Superior video quality – up to 1920 x 1440 @ 60Hz
Supports up to 450MHz bandwidth for high performance video
Long distance transmission – up to 30m *
Supports VGA, SVGA, UXGA, WUXGA, and multisync
EDID Expert – selects the optimum EDID settings for smooth power-up and highest quality display
Expandable – provides up to 8 video displays
Features RS-232 serial port for command controls **
RS-232 chain control – use RS-232 commands to control cascaded devices via VGA cable
Supports stereo audio
Plug-and-play – no software installation required

Note:
* Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality
** The VS0102 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com)

Technical Specification

Video Input
Interfaces	1 x HDB-15 Male (Blue)
Impedance	75 Ω
Max. Distance	1.8 m
Video Output
Interfaces	2 x HDB-15 Female (Blue)
Impedance	75 Ω
Video
Max. Bandwidth	450 MHz
Max. Resolution	Up to 1920 x 1440
Max. Distance	Up to 30 m
Audio
Input	1 x Mini Stereo Jack Female (Green)
Output	2 x Mini Stereo Jack Female (Green)
Control
RS-232	1 x DB-9 Female (Black)
EDID Settings	EDID Mode: Port 1 / Auto / Default
Connectors
Power	1 x DC Jack
Power Consumption	DC5.3V:0.74W:3BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.46 kg ( 1.01 lb )
Dimensions (L x W x H)	13.00 x 7.61 x 4.40 cm (5.12 x 3 x 1.73 in.)
Carton Lot	10 pcs
