2-Port USB VGA/Audio KVM Switch

Product Code : CS72U

Brand Category : Desktop KVM Switches

Description

One VGA console controls two USB VGA interface computers

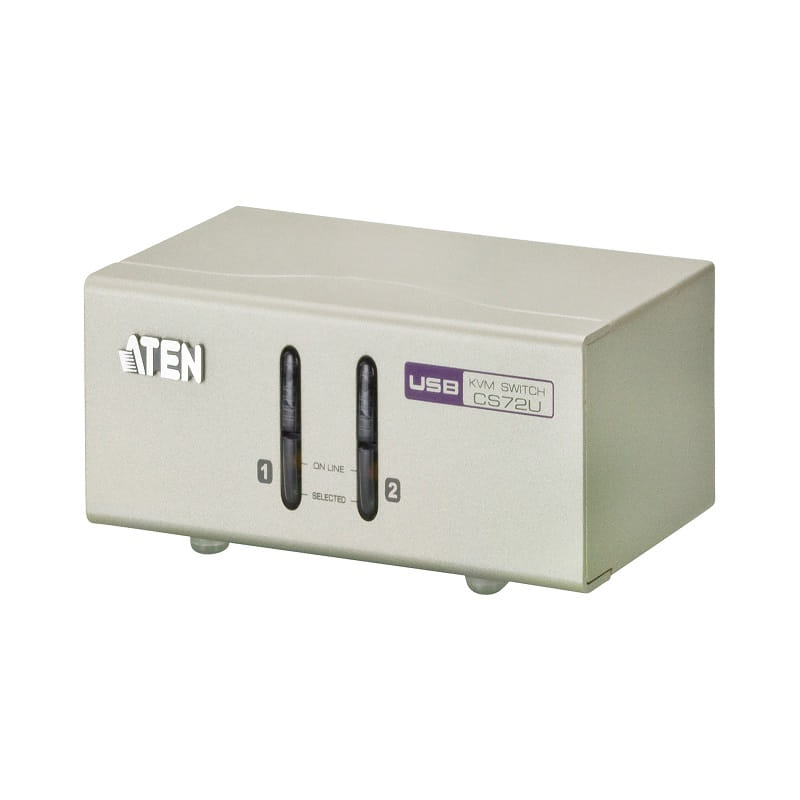

Computer selection via front panel pushbuttons
Multiplatform support - Windows, Linux and Mac
Audio Enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
Superior video quality – 2048 x 1536; DDC2B
Supports USB hot-plugging
Bus-Powered

Technical Specification

Computer Connections	2
Port Selection	Pushbutton

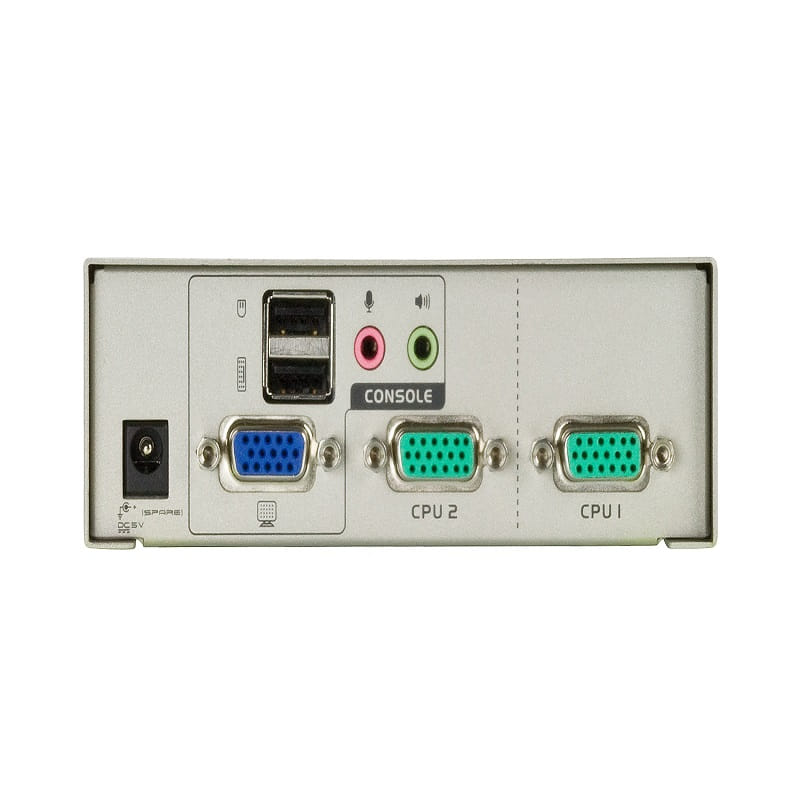

Connectors
Console Ports	2 x USB Type A Female (Black) 1 x HDB-15 Female (Blue) 1 x mini stereo Jack Female (Pink) 1 x mini stereo Jack Female (Green)
KVM Ports	2 x SPHD-18 Female (Green)
Power	1 x DC 5V Jack (Spare)
LEDs
Online	2 (Orange)
Selected	2 (Green)
Switches
Selected	2 x Pushbuttons
Video	2048 x 1536 @ 60 Hz; DDC2B
Power Consumption	DC5V:0.142W:5BTU
Environmental
Operating Temperature	0-50°C
Storage Temperature	-20-60°C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Metal
Weight	0.45 kg ( 0.99 lb )
Dimensions (L x W x H)	13.00 x 7.65 x 4.40 cm (5.12 x 3.01 x 1.73 in.)
