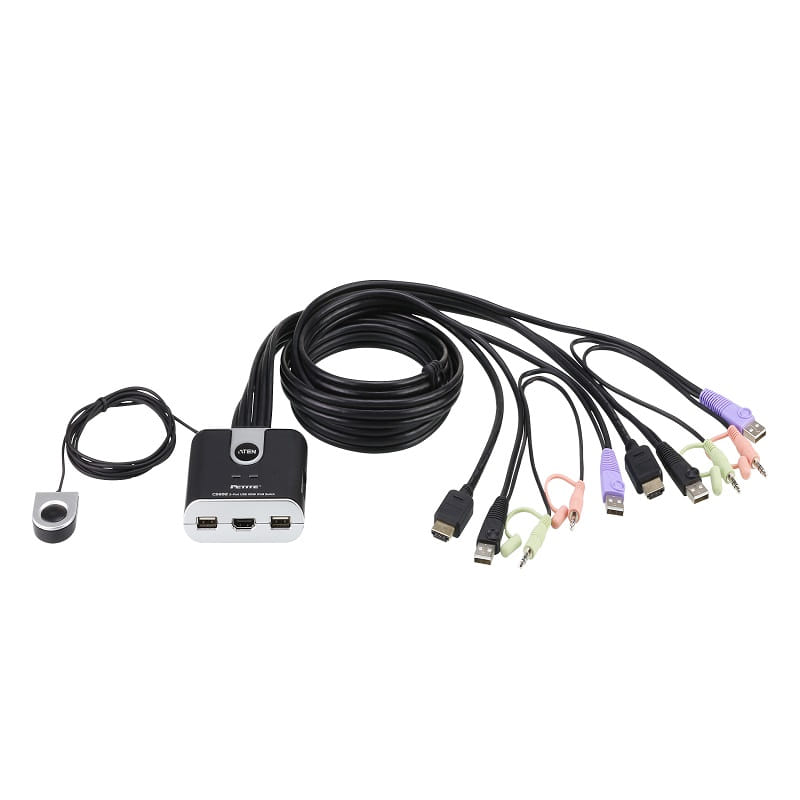

2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector

Product Code : CS692

Brand Category : Cable KVM Switches

Description

One KVM console controls two USB HDMI computers
HDMI compatible; HDCP compatible
Computer selection via remote port selector, hotkeys, and USB mouse
Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus*
Multiplatform support - Windows, Mac, Linux
Compact design, built-in all-in-one cables (2 x 1.2 m)
Superior video quality - up to 1920 x 1200; 1080p
Compatible with widescreen LCD monitors
Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Power on detection - if one computers is powered off, the CS692 will automatically switch to the other computer
Supports gaming and multimedia keyboards
Supports multifunction and wireless keyboards and mice
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Mac keyboard support and emulation**
USB 2.0 mouse port can be used for USB hub and USB peripheral sharing***
Bus-Powered
Firmware upgradable

Note: * HD audio through the HD monitor's built-in speakers cannot be switched independently.
** PC keyboard combinations emulate Mac keyboards. Mac keyboards work only with their own computers.
*** May require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode.

Technical Specification

Computer Connections	2
Port Selection	Hotkey, Remote Port Selector, Mouse
Connectors

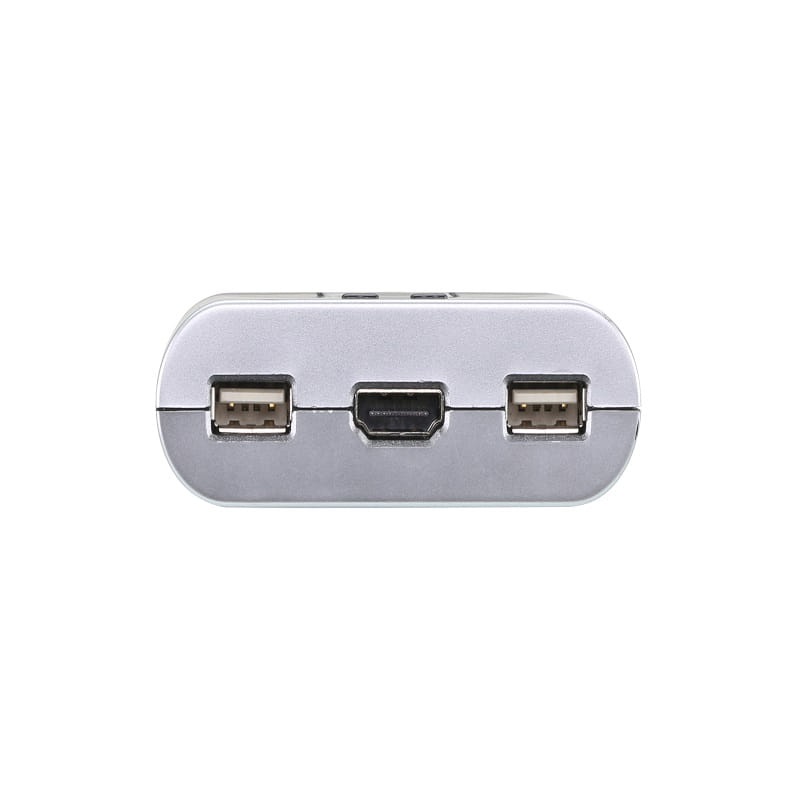

Console Ports	1 x HDMI Female (Black) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM Ports	2 x HDMI Male (Black) 2 x USB Type A Male (Purple) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
LEDs
KVM	2 (Green)
Cable Length
KVM	2 x 1.2 m
Remote Port Selector	1.8 m
Emulation
Keyboard / Mouse	USB
Video	1920 x 1080 @ 60 Hz; 1920 x 1200 @ 60Hz
Scan Interval	3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption	DC5V:0.72W:8BTUBTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.48 kg ( 1.06 lb )
Dimensions (L x W x H)	8.24 x 6.65 x 2.52 cm (3.24 x 2.62 x 0.99 in.)
