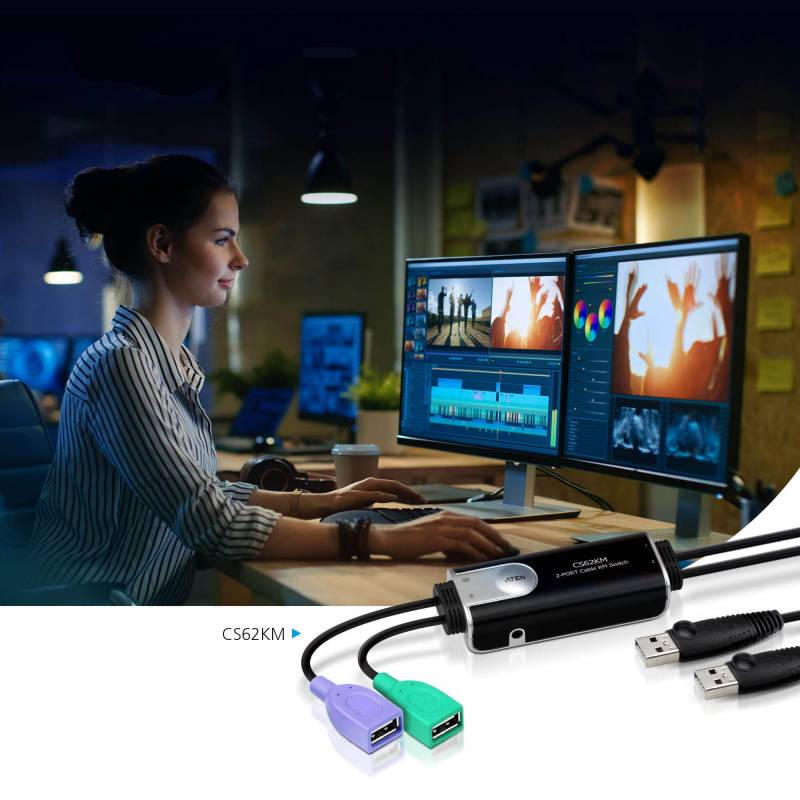

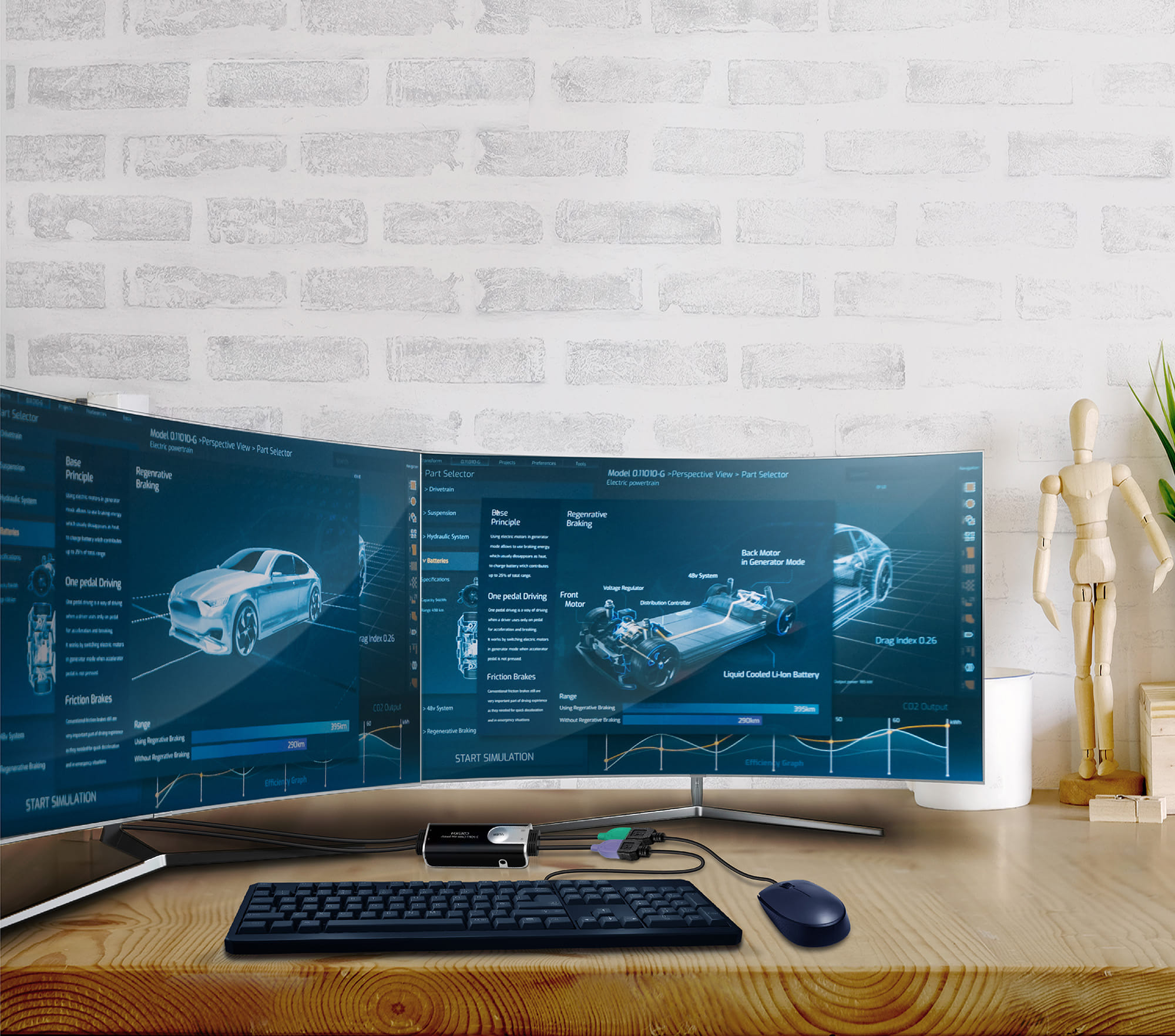

2-Port USB Boundless Cable KM Switch

Product Code : CS62KM

Brand Category : Cable KVM Switches

Description

Single USB keyboard and mouse control up to 2 computers
Computer selection via remote port selector, hotkey, mouse cursor, and mouse wheel¹
No software required
Firmware upgradable
Supports USB hot-plugging
Bus-powered – no external power adapter required²
Works with Windows, iOS, Android, macOS, and Linux operating systems³

Note:
1. Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
2. The USB bus-powered design allows the switch to get power from the connected computers. It requires connection to two computers to get sufficient power supply.
3. The boundless switching only supports on Windows operating system.

Technical Specification

Computer Connections	2
Port Selection	Hotkey, Mouse Wheel, Mouse Cursor, Remote Port Selector
Connectors
Console Ports	2 x USB Type A Female
KVM (Computer) Ports	2 x USB Type A Male
Remote Port Selector	1 x 2.5mm Audio Jack Female
LEDs
Selected	2 (Green)
Cable Length
Console	0.15 m
Computer	1.2 m
Remote Port Selector	1.8 m
Emulation
Keyboard / Mouse	USB
Power Consumption	DC 5V:0.74W:7.7BTU
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20-60°C
Humidity	0-80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.12 kg ( 0.26 lb )
Dimensions (L x W x H)	8.45 x 3.40 x 2.21 cm (3.33 x 1.34 x 0.87 in.)
