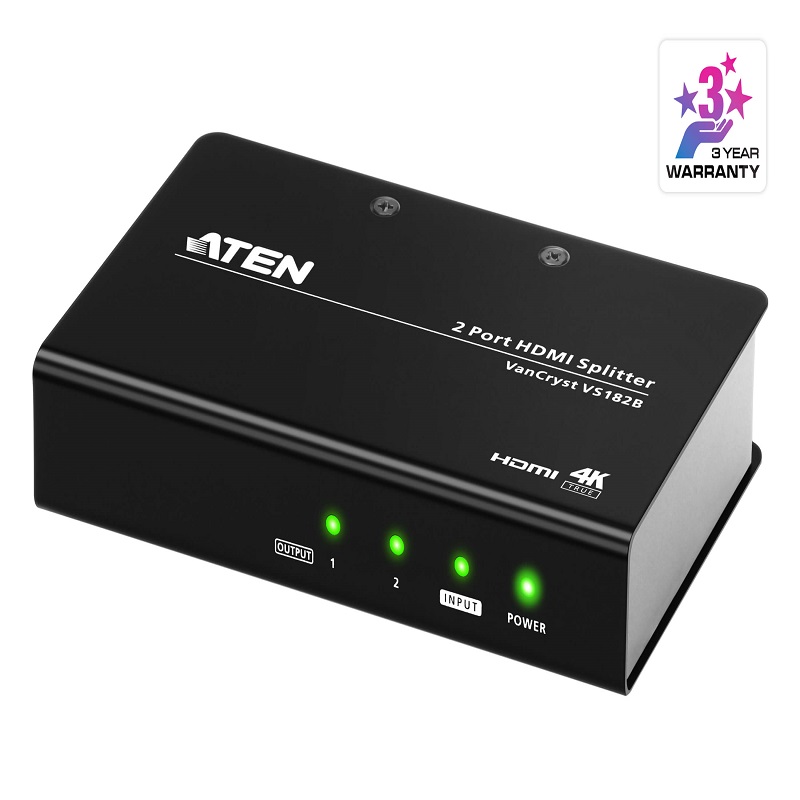

2-Port True 4K HDMI Splitters

Product Code : VS182B

Brand Category : Video Splitters

Description

Connects one HDMI source to two HDMI displays at the same time
HDMI (3D, Deep Color, 4K); HDCP 2.2 Compatible
Supports HDR10⁺
Supports max resolutions of up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4)
Long distance transmission- up to 15 m(1920x1200)/ 1.8m (True 4K)*
Max pixel clock rate up to 600 MHz
Max data rate up to 18 Gbps (6 Gbps per lane)

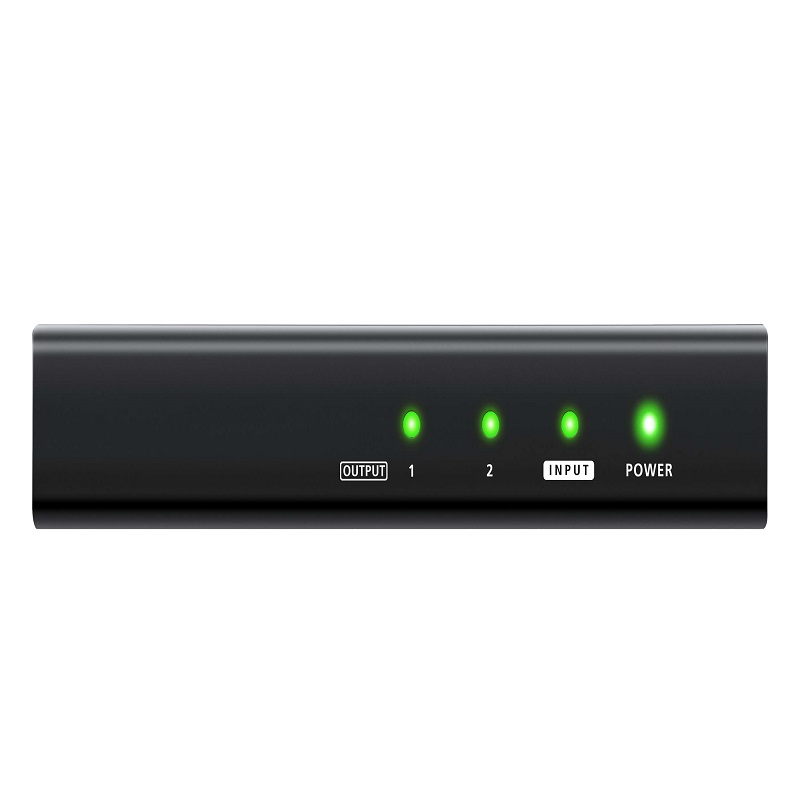

LED indication of power status and source devices
EDID Expert™ – Selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution via EDID DIP Switch, allowing users to effortlessly switch among Port 1, Default, and Auto
Plug-and-play – No software installation required

* Note: Compatible with ATEN 2L-7D02H-1

Technical Specification

Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	5m at 4K@60Hz (4:4:4)
Video Output
Interfaces	2 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	5m at 4K@60Hz (4:4:4)
Video
Max. Data Rate	18 Gbps( 6 Gbps Per Lane)
Max. Pixel Clock	600 MHz
Compliance	HDMI (3D, Deep Color, 4K); HDCP Compatible
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Audio
Input	1 x HDMI Type A Female (Black)
Output	2 x HDMI Type A Female (Black)
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:4.24W:20BTU
Environmental
Operating Temperature	0-40 °C
Storage Temperature	-20 - 60 °C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.32 kg ( 0.7 lb )
Dimensions (L x W x H)	12.50 x 8.00 x 2.50 cm (4.92 x 3.15 x 0.98 in.)
Carton Lot	20 pcs
