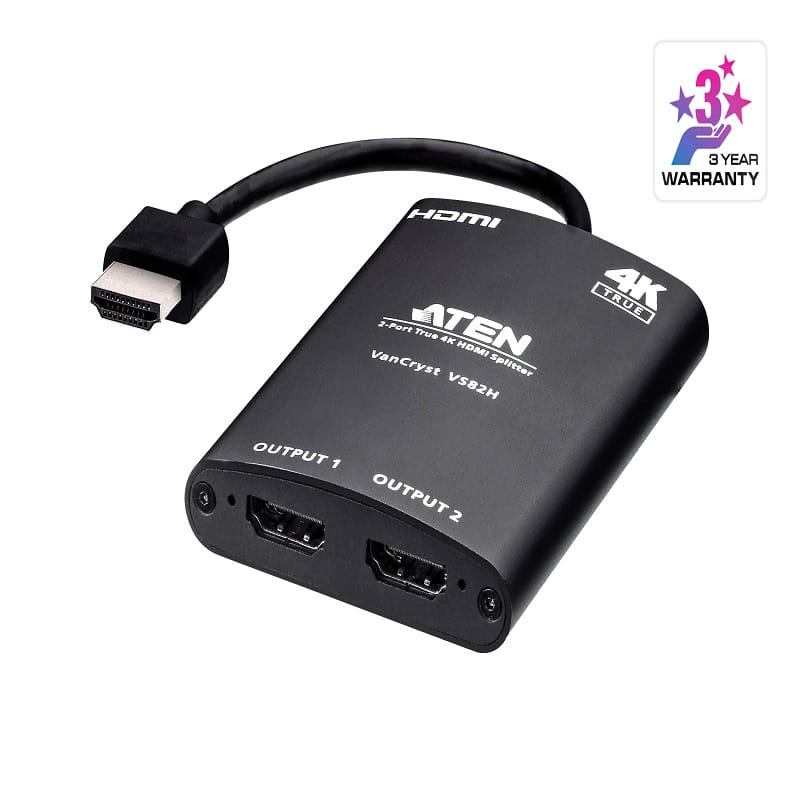

2-Port True 4K HDMI Splitter

Product Code : VS82H

Brand Category : Video Splitters

Description

Distributes one True 4K source to two HDMI displays at the same time
Automatic downscaling function – automatically adjusts the resolution to 1080p for 1080p displays to fit their optimal output
HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
True 4K video resolution (up to 4096 x 2160 @ 60 Hz; 4:4:4); HDR supported
Supports max. data rate up to 18 Gbps (6 Gbps Per Lane)
Supports Dolby TrueHD and DTS-HD Master 7.1 Audio channel
Automatic EDID detection – enjoy high-quality display and use of the best resolution across different screens
Quality and durable aluminum metal enclosure

Technical Specification

EDID Settings	PORT-1 & Default
LEDs
Status	HDMI Output x 2 (Blue) Power Input x 1 (Blue)
Video Input
Interfaces	1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	30cm at 4K@60Hz (4:4:4)
Video Output

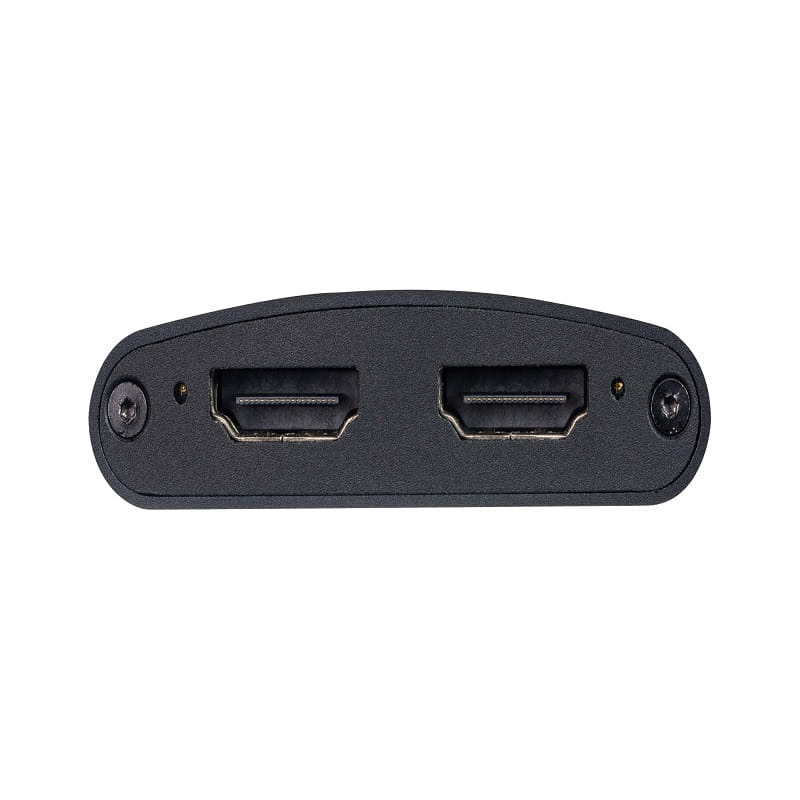

Interfaces	2 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	5m at 4K@60Hz (4:4:4)
Video
Max. Data Rate	18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock	600 MHz
Compliance	HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 Compatible
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Power Consumption	DC 5V:1.35W:4.6BTU
Connectors
USB Port	Micro-USB to USB cable (50cm) X 1 Firmware upgrade & power source
Environmental
Operating Temperature	0-40 °C
Storage Temperature	-20 - 60 °C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal (aluminum)
Weight	0.09 kg ( 0.2 lb )
Dimensions (L x W x H)	8.80 x 6.00 x 1.50 cm (3.46 x 2.36 x 0.59 in.)
Carton Lot	40 pcs
