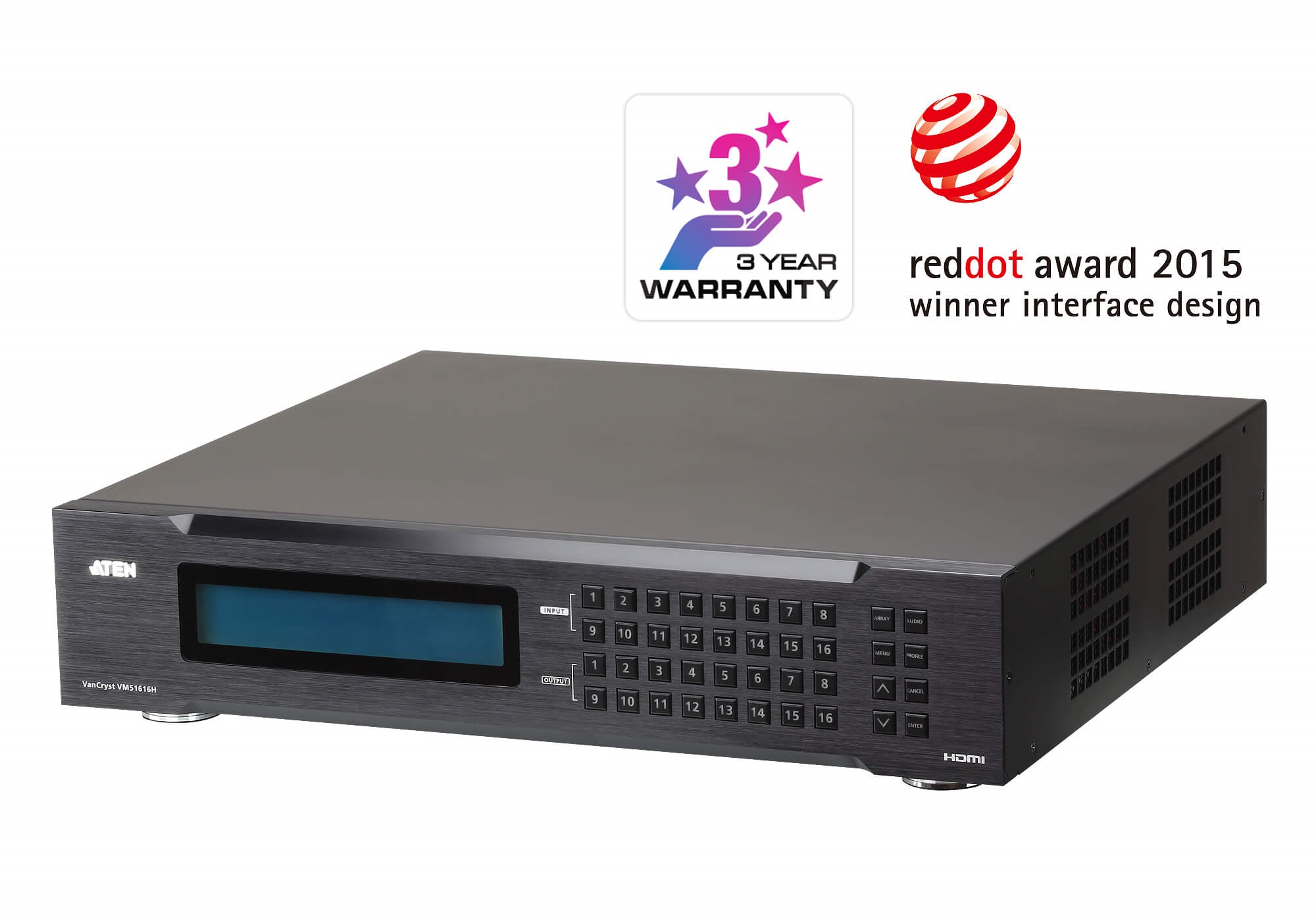

16 x 16 HDMI Matrix Switch with Scaler

Product Code : VM51616H

Brand Category : Video Matrix Switches

Description

Connects any of 16 HDMI sources to any of to 16 HDMI displays

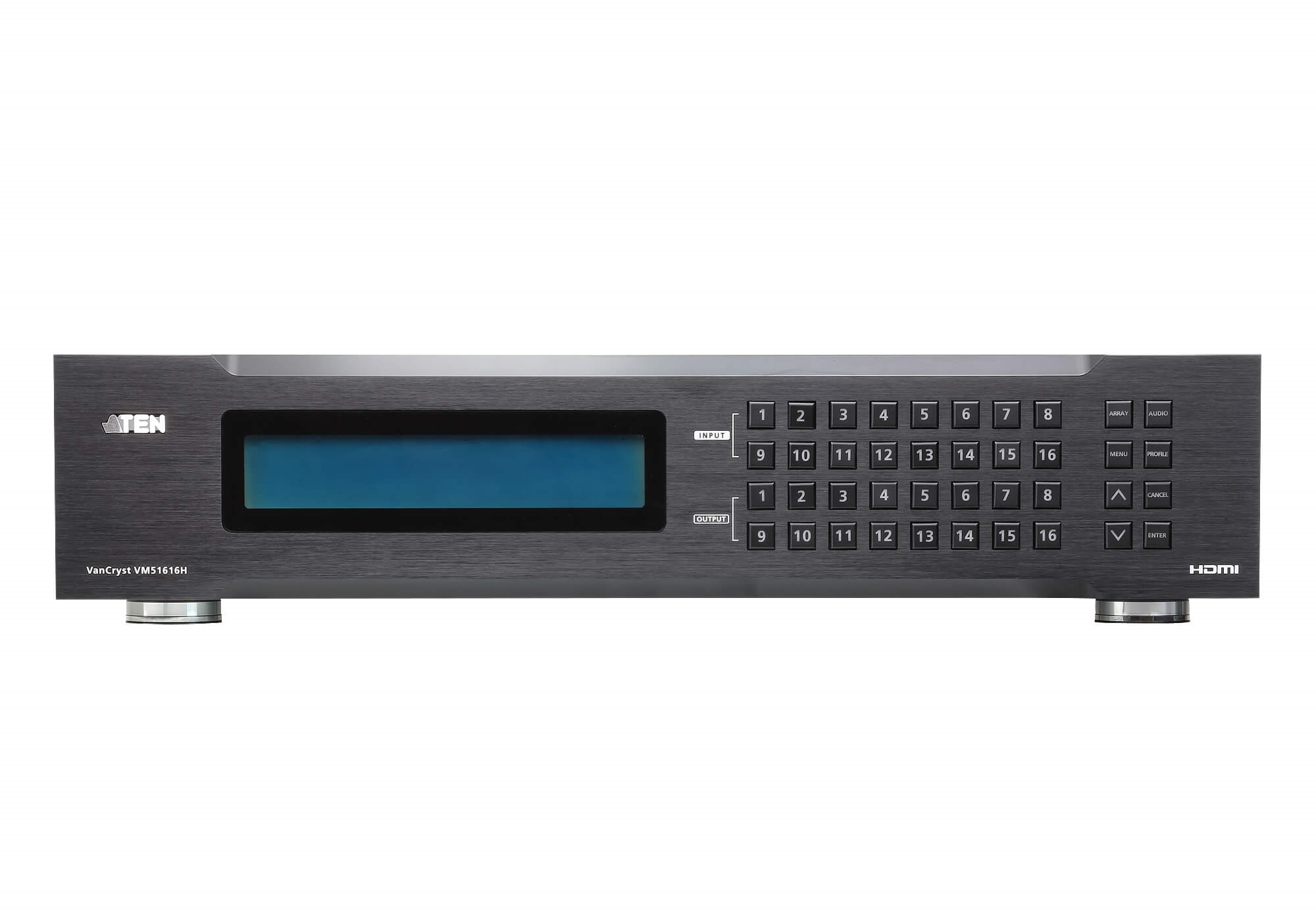

Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web-based GUI or Telnet
View and control via ATEN Video Matrix Control App in a swift and agile way
Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions
Video Wall –allows you to create custom video wall layouts via intuitive web GUI*
EDID Expert™ –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
HDMI (3D, Deep color); HDCP 1.4 compatible
Consumer Electronics Control (CEC) support
Local HDMI output –allows multiple preview of 16 video sources
Audio-enabled; HDMI audio can be extracted to stereo audio
Supports Dolby True HD and DTS HD Master audio
ESD protection for HDMI
Rack-mountable (2U design)

*Note:
1. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

Technical Specification

Video Input
Interfaces	16 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	up to 5m
Video Output
Interfaces	16 x HDMI Type A Female (Black) (Array Mode): 1 x HDMI Type A Female (Black)
Impedance	100 Ω
Max. Distance	up to 15 m
Video
Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock	225 MHz
Compliance	HDMI (3D, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 1080p
Audio
Output	1 x Mini Stereo Jack Female (Green)
Control
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Ethernet	1 x RJ-45 Female
EDID Settings	EDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Switches
Power	1 x Rocker Switch
Connectors
Power	1 x 3-Prong AC Socket
Power
Maximum Input Power Rating	100-240 VAC; 50-60 Hz; 1.0A
Power Consumption	AC110V:124.5W:584BTU AC220V:121.8W:571BTU
Environmental
Operating Temperature	0-40°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	7.86 kg ( 17.31 lb )
Dimensions (L x W x H)	43.24 x 38.18 x 8.80 cm (17.02 x 15.03 x 3.46 in.)
Rack Height (U Spaces)	2U
Carton Lot	1 pc
