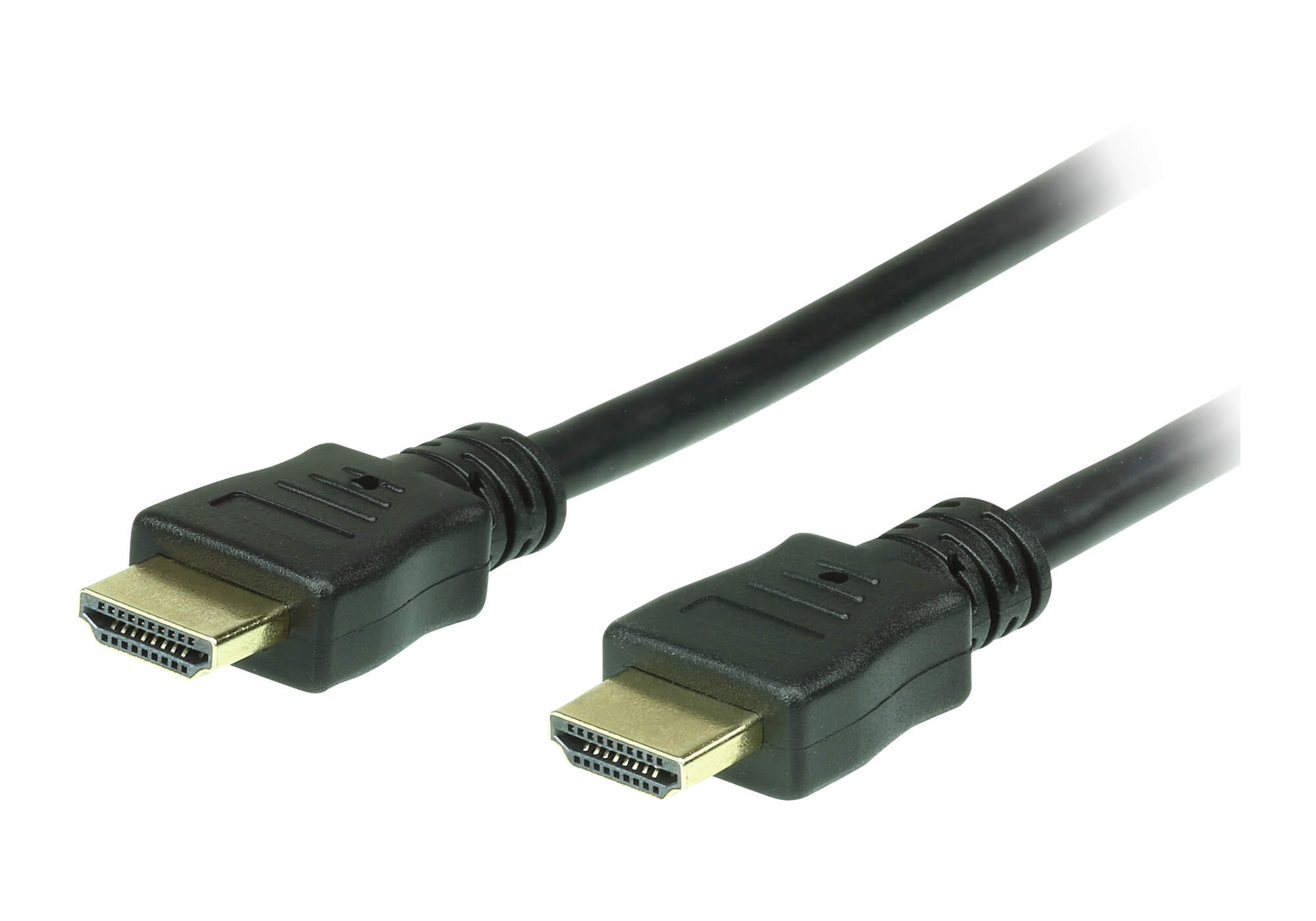

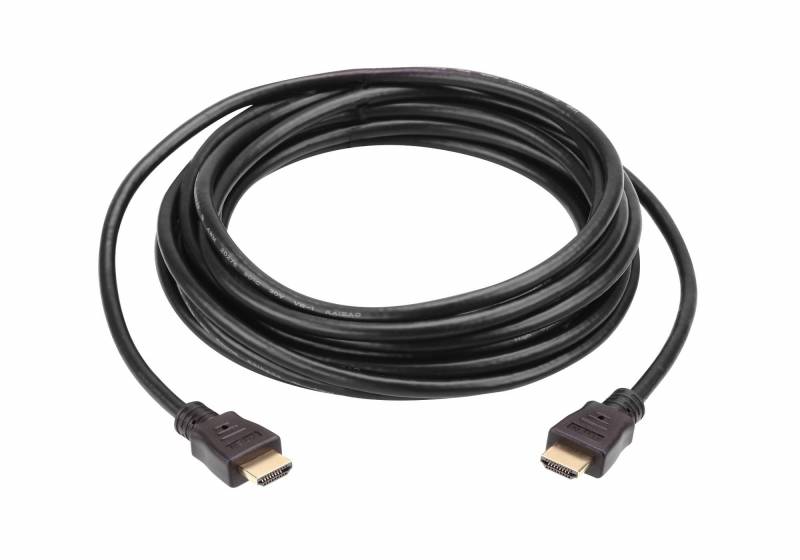

15 m High Speed HDMI Cable with Ethernet

15 m High Speed HDMI Cable with Ethernet

Product Code : 2L-7D15H

Brand Category : HDMI Cables

Description

  • Superior video quality:
     • up to 4K (4096 x 2160 @30Hz)
  • HDMI Ethernet Channel functionality: additional dedicated data channel supports networking*
  • HDMI (3D, Deep Color, 4K); HDCP 1.4 compliant
  • Gold-plated connectors for reliable transmissions
  • Available in lengths from 5 to 20 m
  • RoHS compliant
  • Bend Radius 90°**
    Note:
    * Feature only available if linked devices are HDMI Ethernet Channel enabled
    ** Swings 100 times between angles of +/- 90 degrees, at a frequency of 13 times per minute

Add to Query Cart PDF Download

Technical Specification

Max. Video Resolution4096x2160@30Hz
Physical Properties
Cable Length15M
Cable ColorBlack
Cable Outer Dimension10.0 ± 0.20mm
Conductor Gauge24AWG
Conductor MaterialTinned Copper
Connector PlatingGold
Connector TypeHDMI (19pin) Male to Male
Cable Shield TypeAluminum Foil
Cable Jacket TypePVC
Environmental
Operating Temperature80℃
RatingUL VW-1 (Flame rate), CSA
