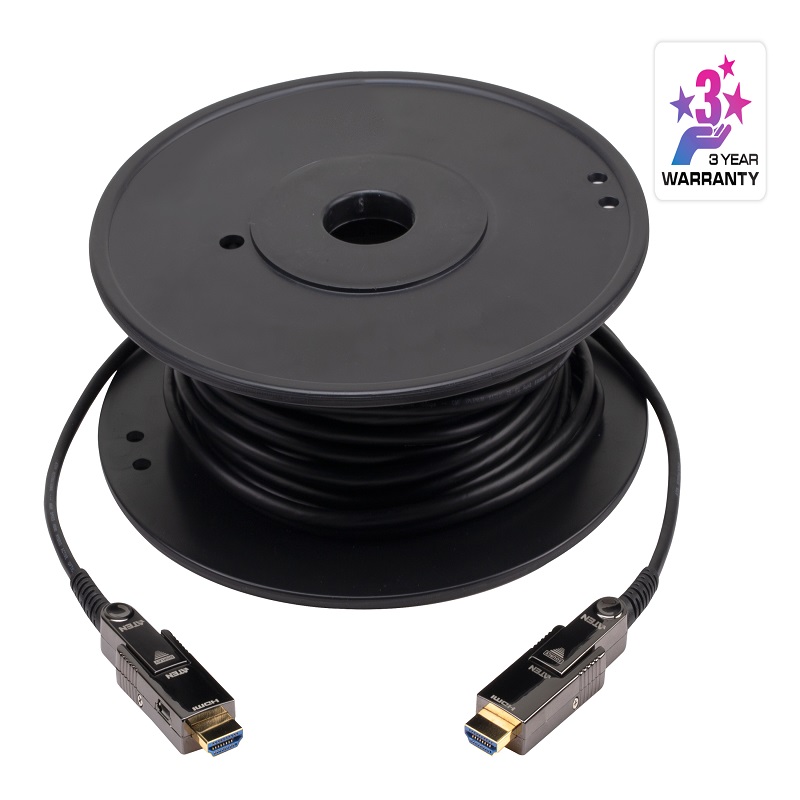

10M True 4K HDMI Active Optical Cable

Product Code : VE7831A

Brand Category : Video Extenders

Description

HDMI (3D, Deep Color, 4K, HDR, HEC, ARC) ; HDCP 2.2 compliant
Extends True 4K signals 4096 x 2160 @ 60 Hz (4:4:4) up to 10 m
Supports HDR
Supports HDMI Ethernet Channel (HEC) – combines audio, video, and data streams into a cable to simplify the set-up
Supports Audio Return Channel (ARC) – connects TV and audio system, eliminating the need for an additional cable
Reduced EMI and RFI for lower noise interference
Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
Robust cable pulling strength (Max. 10 kg) and compression load resistance (Max. 50 kg)
Additional power source is available via Micro USB cable for better compatibility
Gold-plated connectors for reliable transmissions
Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)

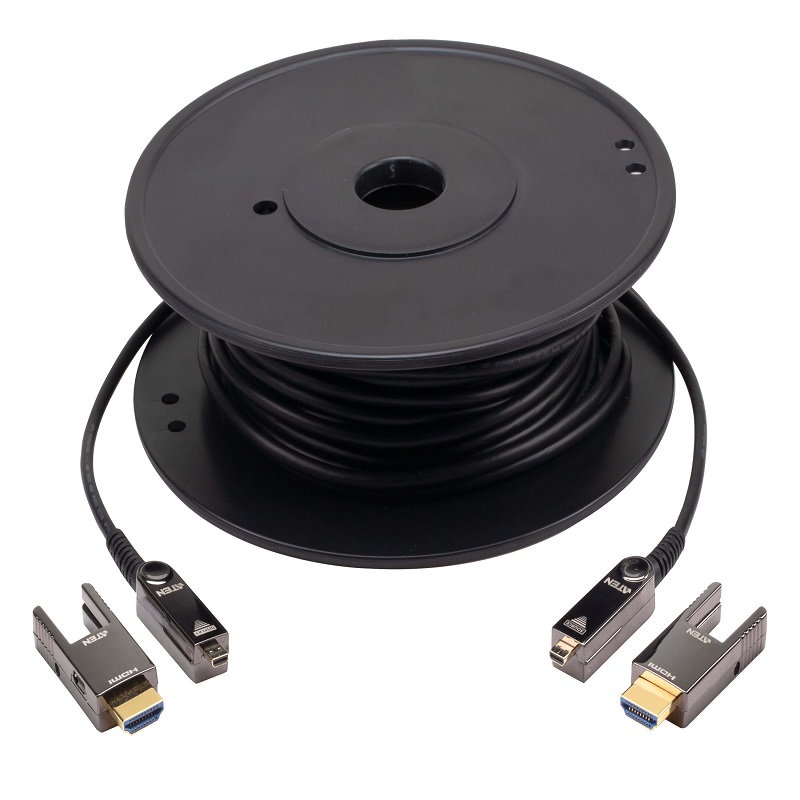

Pluggable gender for easy installation
Plug-and-play

Technical Specification

Cable Length	10M / 32.8 ft
Cable Type	Cable Type: Hybrid cable with optical fiber and copper wire HDMI Standards: High Speed HDMI Cable
Video Input
Interfaces	1 x HDMI 19-pin Type-A Male (gold-plated) pluggable connector 1 x HDMI Type-D Male
Video Output
Interfaces	1 x HDMI 19-pin Type-A Male (gold-plated) pluggable connector 1 x HDMI Type-D Male
Video
Max. Data Rate	18 Gbps (6 Gbps per Channel)
Max. Pixel Clock	600 MHz (Max.)
Compliance	HDMI (3D, Deep Color, 4K, HDR, HEC, ARC) HDCP 2.2 Color sub-sampling: 4:4:4 / 4:2:2 / 4:2:0 Color Depth: 30 / 36 / 48 bit
Max. Resolutions / Distance	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) / 10m
Communication
Signals	TMDS / HDCP 2.2 / EDID / CEC
Audio
Input	PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Output	PCM 8-channel, Dolby Digital True HD, DTS-HD Master Audio
Conductor
Construction	7 x Tinned Copper Wire 4 x OM3 Optical Fiber (50/125um)
Jacketed
Material	UL Plenum (CMP-OF)
Certifications
Certifications	Safety and Emission: CE / FCC / RoHS2 / UL CMP-OF
Power Consumption	DC5V:0.25W:1BTU
Power (Optional)	Optional power source: Micro USB to USB cable (100cm) 5V, 250mW (max)
Notification	Bend Radius: 20mm (Min.) Connector Pull Strength: Max. 10kg (100N) Compression Load Resistance: Max. 50kg (500N) Shielding & Filling: AL Mylar shielding / Kevlar Filling
Environmental
Operating Temperature	0°C to 50°C (32℉ to 122℉)
Storage Temperature	-20°C to 70°C (-4℉ to 158℉)
Humidity	0 - 85% RH, Non-Condensing
Physical Properties
Housing	Connector Case: Zinc-Alloy
Weight	0.30 kg ( 0.66 lb )
Cable Outer Dimension	Cable Outer Diameter: 4.5mm (± 0.2mm)
Carton Lot	10 pcs
