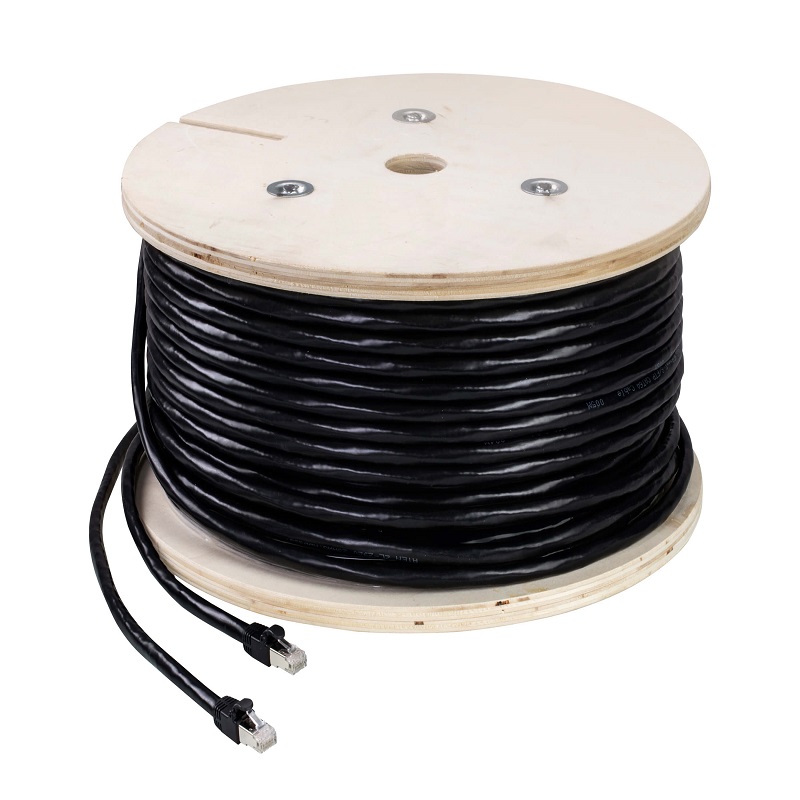

100M HDBaseT™ S/FTP Cat 6A Cable

Product Code : 2L-2920

Brand Category : Cat 5 Cables

Description

Meets HDBaseT 3.0 standard for uncompressed multi-signal transmission across 100 m, including True 4K video, audio, Ethernet, power and control
Supports sweep frequency up to 500 MHz
Conductor material: 23 AWG solid bare copper
Outer shielded material: AI Mylar tape and braid
Braid wire: tinned copper
Compatible with ATEN HDBaseT extenders, splitters, and matrix switches
Resistant to electromagnetic interference (EMI) / radio frequency interference (RFI) brought by walkie-talkies or any other radio devices to prevent AV signal from disturbance.

Technical Specification

Cable Type	Cat 6A S/FTP
Cable Length	100m / 330ft
Conductor
Size	23AWG
Construction	Individual shielded pair
Material	Solid bare copper
Number of Pairs	4 pairs
Insulation
Material	Foamed Polyolefin
Color codes	Blue & White/Blue stripe 1.25 ± 0.1 mm Orange & White/Orange stripe 1.25 ± 0.1 mm Green & White/Green stripe 1.25 ± 0.1 mm Brown & White/Brown stripe 1.25 ± 0.1 mm
Binder
Material	FOAM-PP
Coverage	110% Coverage (Overlap 10% min.)
Shield
Material	AI Mylar tape
Coverage	100% Coverage and mylar side facing out
Drain Wire
Construction	24AWG Tinned Stranded Copper
Braid
Material	Tinned Copper
Coverage	80% Coverage
Jacketed
Material	Polyvinyl chloride (PVC)
Average Thickness	0.5 mm ± 0.05mm
Diameter	9.0 mm ± 0.3mm
Color	Black
Electrical
DC Resistance	7.3 ohms Max. /100m, 23AWG
Propagation Delay	498ns Max./100m
Propagation Delay Skew	10ns Max./100m
Insertion Loss	39dB Max. at 500Mhz / 100m
Impedance	100 ohms (nominal)
Environmental
Operating Temperature	0°C to 50°C
Temperature (Operating / Storage)	-20°C to 60°C
Humidity	0-80% RH, Non-condensing
Physical Properties

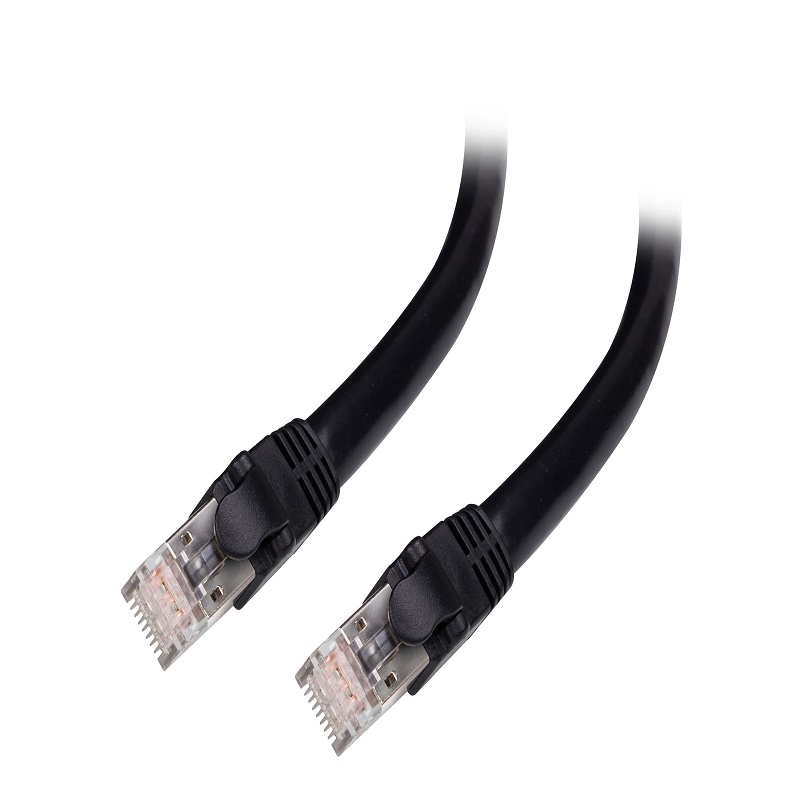

Connector Type	2 x RJ-45 Male (Black), Inner mold LD-PE
Over Mold	PVC
Weight	11.00 kg ( 24.23 lb )
